Flow Rate: 500 L/min
Technology Employed: Claind's Pressure Swing Adsorption (PSA) Fast Purity Process
Output Pressure:
0 - 87 PSI
0 - 6 bar
Purity: > 99.9995%
Total Hydrocarbons: < 0.1 ppm (for HC model only)
Air Input Characteristics:
Particulate ≤ 0.01 mm
Oil vapors ≤ 0.01 mg/m^3
Moisture ≤ 3 °C dew point ATP
Min pressure : 8 bar
Air flow rate: 6 L/min
Electrical Supply for NiGen GC: 115/230 V; +/- 10% 60-50 Hz 50 w
Electrical Supply for NiGen GC HC:
115 V +/- 10% 60 Hz 200 W
230 V +/- 10% 50 Hz 200 W
Protection Index: IP20
Noise:
< 50 dBA for 98% of operation time
< 60 dBA for 2 sec. each cycle
Operating Temperature: 40 °F - 100 °F (5 °C - 40 °C)
Environmental Humidity: maximum of 90% without condensation
Maximum Altitude:
2000 meters above sea level
6561.68 feet above sea level
Dimensions :
GC Height: 15.8" (40cm)
Width: 14.9" (38cm)
Depth: 20.8" (53cm)
Weight: GC: 63lbs (28kg)
Pneumatic Connections: Compressed air inlet : G 1/8” female
Nitrogen outlet: G 1/8” female
DESCRIPTION

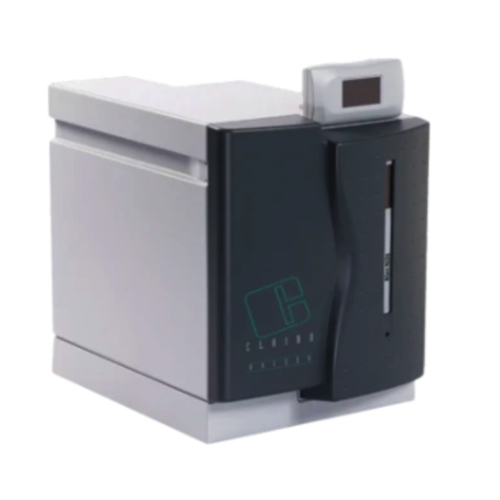

The NiGen GC completely removes hydrocarbons using a Pt/Pd catalyzer. It is capable of distributing 500 mL/min with greater than 99.9995% purity. It's designed to be connected to a dedicated AirComp compressor (can be purchased separately). Parallel connection allows for up to 4 generators to be stacked in a tower configuration. It features a CPU with touch screen display, which can be linked to a generator using CAN-BUS. This enables monitoring of the operating status and provides access to the maintenance menu, alarm reports, and functional parameters. It is capable of supporting up to 12 FIDs or NPDs with makeup gas or up to 7 ECDs.
