Type: Table Stand type
Lens:
Line Up: 2x, 4x switchable (area magnification) Optical lens glass lens with AR (anti-reflection) coating
Lens dimensions: Effective diameter130mm×50mm
Illumination:
Light Source: White LED
Rated power consumption: 16W
AC adapter type: UNIFIVE336-2415(24V/1.5) Weight: 270g
AC adapter input voltage: AC100V～240V 50/60Hz
AC adapter shape: A plug
AC adapter cord length: 1800m
Dimming function: Yes (100 to 0%)
Main body:
Dustproof and waterproof protection class: IP30 (for indoor use only)
Operating temperature range: ０℃～3５℃
Weight: 3kg

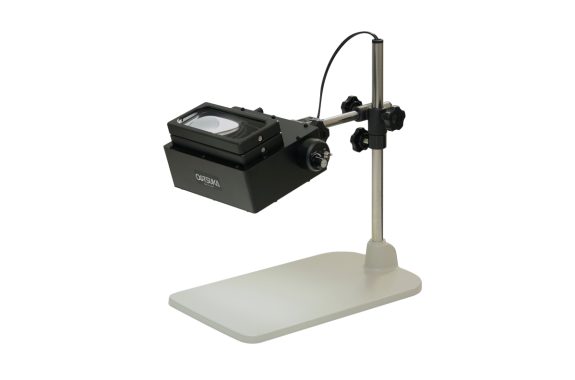

The magnifier has finally been converted to coaxial illumination, combining the features of the illuminated magnifier and coaxial illumination.
The coaxial illumination can illuminate the object under observation from the same direction as the optical axis of the lens, making it possible to visualize the unevenness of the object under observation.
Magnification is 2x only and it has an AR coating to reduce glare, which is a concern.
The rectangular shape of the lens is similar to the human field of view, allowing both eyes to see the observed object in three dimensions
