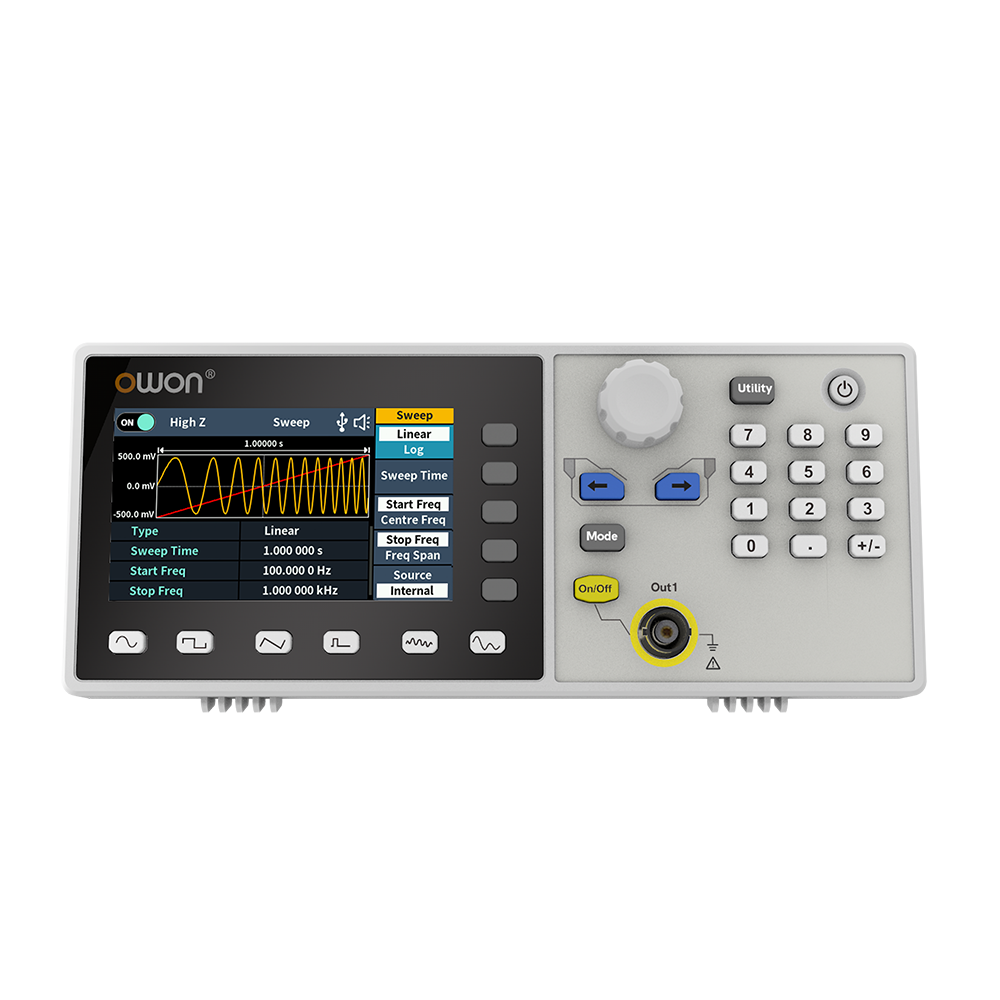

Channel: 1
Frequency Output: 35MHz
Sample Rate: 125MSa/s
Vertical Resolution: 14 bits
Waveform:
Standard Waveform: sine, square, pulse, ramp, and noise
Arbitrary Waveform: exponential rise, exponential fall, sin(x)/x, step wave, and others, total 150 built-in waveforms, and user-defined arbitrary waveform
Frequency:
Sine: 1μHz - 30MHz
Square: 1μHz - 15MHz
Pulse: 1μHz - 15MHz
Ramp: 1μHz - 1MHz
Noise: 20MHz (-3dB，typical)
Arbitrary Waveform: 1μHz -10MHz
Frequency Resolution: 1 μHz or 7 significant figures
Frequency Stability: ±30 ppm at 0±40℃
Frequency Aging Rate: ±30 ppm per year
Arbitrary:
Waveform Length: 2 - 8K points
Sample Rate: 125Ma/s
Amplitude:
into 50Ω Load: 1mVpp - 10Vpp (≤ 10MHz); 1mVpp - 4Vpp (≤ 30MHz)
DC Offset Range (AD+DC): ±(10 Vpk – Amplitude Vpp/2) high resistance (≤ 10MHz) ; ±(5 Vpk – Amplitude Vpp/2) 50 Ω (≤ 10MHz)
DC offset Resolution: 1mV or 4digits
Load Impedance: 50Ω (typical)
DC offset Accuracy: ±(1 % of |setting| + 1 mV + amplitude Vpp x 0.5%)
Modulation:
Type: AM, FM, PM, FSK, sweep, Burst
Internal Modulation Frequency: 2 mHz to 100 kHz
Sweep:
Carrier: Sine, rectangular wave, ramp wave, arbitrary wave(Except DC)
Minimum/Maximum Starting Frequency: 1 μHz（minimum）/ maximum frequency of corresponding carrier
Minimum/Maximum Termination Frequency: 1 μHz（minimum）/ maximum frequency of corresponding carrier
Trigger Source: internal, manual
Burst:
Waveform: Sine wave, square wave, ramp wave, pulse wave and arbitrary wave (Except DC)
Types: N-Cycle
Trigger source: Internal, manual
Carrier frequency: 1μHz ≤ Offset ≤ Maximum frequency of corresponding carrier /2
Input / Output:
Display: 3.6-inch TFT LCD with resolution 480 x 272
Communication Interface: USB Device
Mechanical specifications:
Dimension (W×H×D): 200mm x 68.5mm x 73.6mm
Weight (without package): 0.5kg
