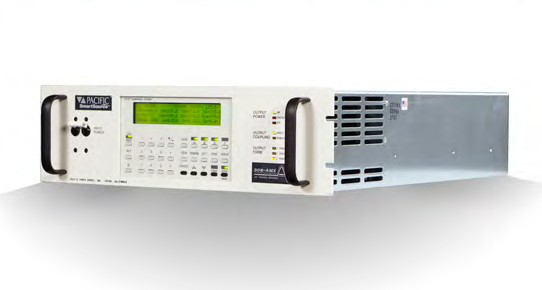

Pacificpower 308AMX Programmable Linear AC Power Source (750VA, 135/234L-N/L-L)

  • Manufacturer: Pacificpower
    Model: 308AMX
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • Contact

- Rated Power (VA): 750

- Coupling Mode: Direct

- Form: 1Ø/2Ø; 3Ø

- Output Voltage Max (1Ø/2Ø; 3Ø) (l-n/l-l) : 135/270; 135/234

- Output Current (1Ø/2Ø; 3Ø) (Arms) : 6/2; 2/Ø

- Frequency Range: 20~5000

- Input Power: 1Ø 47-63Hz

- Unit Height (In/mm/U): 5.25/133/3U

- Unit Weight (Lbs/Kg): 60/27

- Output Frequency:

20~5,000 Hz Direct Coupled

45~5,000 Hz Transformer Coupled

- Line Regulation: 0.1% max for a ±10% line change

- Load Regulation:

Direct Coupled Ranges:

0.25% 20 ~ 2,000 Hz.

0.50% 2,000 ~ 5,000 Hz.

- Output Distortion:

0.1% THDAVG 45 ~ 1,000 Hz

0.25% THDAVG 20 ~ 5,000 Hz

- Ripple and Noise: -72dB

- Response Time: 5 μsec typ

Details

Datasheet
