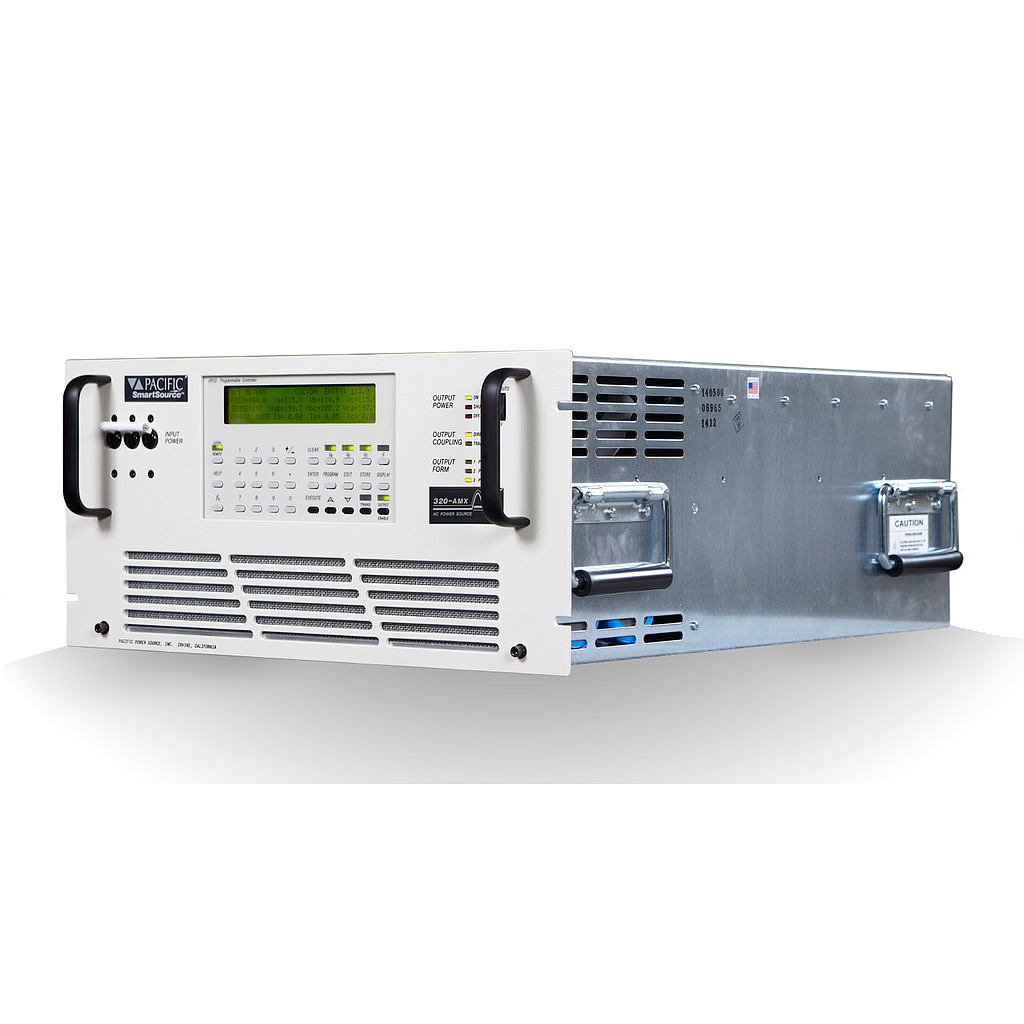

Pacificpower 320AMXT Programmable Linear AC Power Source (2000VA, 7.2/2.4Arms)

  • Manufacturer: Pacificpower
    Model: 320AMXT
    Guarantee: 12 month
    • Request a Quotation Request a Quotation
  • Contact
  •  Call for best price

     Hanoi city: (024) 35.381.269

     Danang city: (0236) 374.77.11

     HCM city: (028) 38.119.636

- Rated Power (VA): 2000

- Output Form: 1Ø/2Ø; 3Ø

- Output Voltage Max (1Ø/2Ø; 3Ø) (l-n/l-l):

Direct: 135/270; 135/234

Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1):

1Ø/2Ø 202/404; 270/540; 338/600

3Ø 202/350; 270/468; 338/585

- Output Current (1Ø/2Ø; 3Ø) (Arms):

Direct: 18/6; 6/Ø

Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1):

1Ø/2Ø 12/4; 9/3; 7.2/2.4

3Ø 4/Ø; 3/Ø; 2.4/Ø

- Frequency Range:

Direct: 20~5000

Transformer (Ratio 1.5:1; Ratio 2.0:1; Ratio 2.5:1): 45~5000; 45~5000; 45~5000

- Input Power: 3Ø 47-63Hz

- Unit Height (In/mm/U):

320AMX: 8.75/222/5U

Transformer Module: 5.25/133/3U

- Unit Weight (Lbs/Kg):

320AMX: 125/56.8

Transformer Module: 125 /56.8

- Output Frequency:

20~5,000 Hz Direct Coupled

45~5,000 Hz Transformer Coupled

- Line Regulation: 0.1% max for a ±10% line change

- Load Regulation:

Direct Coupled Ranges:

0.25% 20 ~ 2,000 Hz.

0.50% 2,000 ~ 5,000 Hz

- Output Distortion:

0.1% THDAVG 45 ~ 1,000 Hz

0.25% THDAVG 20 ~ 5,000 Hz

- Ripple and Noise: -72dB

- Response Time: 5 μsec typ
