Output:
Voltage:
- Output mode: AC
- Standard range: 0~300 Vac LN / 0~520 Vac LL
- Programing resolution: 0.01 V
- Accuracy: ± 0.25% F.S.
- Output waveform: Sine
- DC offset: < 20 mV
- Output noise: < 150 mV RMS
- Output isolation : 550Vac
Frequency
- Standard range: 45.00 ~ 500.0 Hz
- Programing resolution: 0.01 Hz
- Accuracy: ± 0.01%
Current Limit:
Crest factor: 250.0 Arms
- Programing resolution:0.01 Arms
- Accuracy: ± 0.5% F.S.
Measurements (Range, Resolution, Accuracy):
- Voltage: 0~350VLN/ 0~600VLL, 0.01V, ± 0.25% F.S.
- Crest Curent Factor: 1.00 ~ 5.00/ 0.01/ ± 2.0% F.S.
Phase Mode: 2 & 3 Phase
Rated Output: 90 kVA/kW
Dimensions Per 15kVA chassis: HxWxD: 7"x17"x25" / 178x432x635 mm
Weight: 112 lbs / 50.4 kg

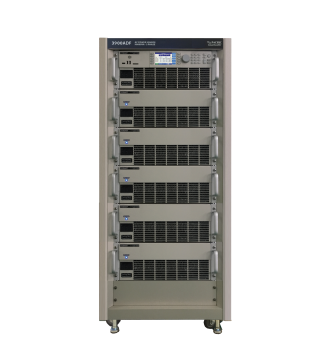

Form Factor: 28U Cabinet or KIT
