Sound level
Measurement range : 35 dB ... 135 dB
Resolution : 0.1 dB
Accuracy : ±2 dB
General technical data
Measurement functions : MIN, MAX, HOLD, ALARM
Frequency : 31.5 ... 8000 Hz
Frequency rating : A
Display type : LCD with illumination
Display refresh rate : 2 x per second
Memory capacity (additional information) : 15 seconds audio and sound level
Microphone type : Electret condenser
Interface : 3.5 mm jack
Operating time : 60 h
Alarm modes : Acoustic: Voice output in German, English, Spanish, French, Japanese, Chinese
Visual: display background green, yellow, red
Menu language : English
Protection class (device) : IP20
Power supply : 9V DC, 1000mA
Plug type : Euro plug device
Weight : 490 g
Height : 197 mm
Depth : 49 mm
Operating conditions : -20 ... 60 °C , 10 ... 90 % r.H
Storage conditions : -20 ... 60 °C , 10 ... 75 % r.H
Delivery scope
1 x PCE-TSM 5 decibel meter
1 x 9 V 1 A plug-in power supply
1 x remote control
1 x screwdriver
6 x 1.5 V AA battery
1 x operating instructions
1 x mounting material

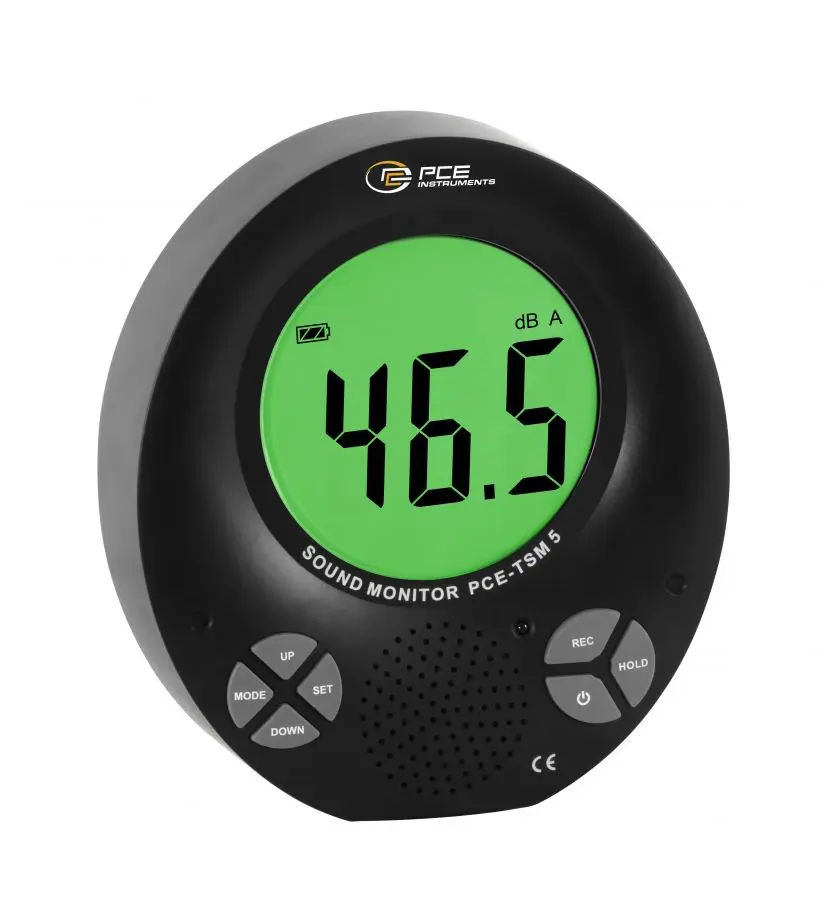

This modern occupational decibel meter is a versatile instrument with a range of innovative functions. An outstanding feature of the occupational decibel meter is the large LCD display designed as a noise traffic light. The integrated noise traffic light of the decibel meter provides the user with visual information on the current noise level at a glance. The green, orange and red color scheme allows the user to see immediately whether the noise level displayed by the decibel meter is within the acceptable range or whether action is required.
In addition to the visual displays, the decibel meter also offers an audible alarm that can be configured in six different languages. This multilingualism ensures broad international applicability.
Another plus point is the ability to set the limit values on the health and decibel meter individually. Users can adjust the limit values for visual and audible warnings according to their specific requirements and local conditions.
The integrated memory of the health and decibel meter has a capacity of 15 seconds and stores the audio and sound data. An audio output allows the user to record or process the measured sound level data externally. The health and decibel meter can be operated in both battery and mains mode.
With the IR remote control, the most important functions of the health and decibel meter can also be operated remotely in working environments with limited access or difficult conditions.
The flexible use as a stand-alone or wall-mounted device makes the health and decibel meter adaptable for a wide range of application scenarios. This versatility and innovative features make the health and decibel meter a helpful tool in areas such as schools, kindergartens, conference rooms and rooms with similar uses
