Frequency
Measuring range: 1 ... 10,000 Hz
Resolution: 0.1 Hz
Accuracy: ±5 %
Acceleration
Measuring range: 0 ... 200 m/s²
Resolution: 0.01 m/s²
Accuracy: ±5 %
Speed
Measuring range: 0 ... 200 mm/s
Resolution: 0.01 mm/s
Accuracy: ±5 %
Displacement
Measuring range: 0 ... 2000 µm
Resolution: 0.01 µm
Accuracy: ±5 %
Infrared temperature measurement
Measuring range: -70 ... 380 °C / -94 ... 716 °F
Resolution: 0.1 °C / °F
Accuracy: ±0.5% at
(0…+60°C), (32 ... 140 °F)
±1% at
(-40 ... 0, 60 ... 120 °C), (-40 ... 32, 140 ... 248 °F)
±2% at
(-70 … -40, 120 ... 180 °C),
(-94 ... -40, 248 ... 356 °F)
±4% at
(180 ... +380 °C), (356 ... 716 °F)
Emissivity: 1 fixed
Tachometer
Measuring range: 10 … 200,000 RPM
Resolution: 0.1 RPM
Accuracy: ±0.1% and ±1 RPM
Units: RPM, Hz
Further specifications for the handheld device
FFT spectrum resolution 400, 800, 1600 lines
Dynamic range: 106 dB
A/D converter resolution: 24 bit
Storage space: 4 GB
Display: 128 x 160 pixels
Interfaces: Micro USB interface
Power supply battery: 3.7 V, 1000 mAh battery
Battery life: ca. 8 hours
Power supply for power pack: 5 V DC, 1 A
Operating conditions: 0 ... 50 °C / 32 ... 122 °F, <85% RH, non-condensing
Storage conditions: -20 ... 60 °C / -4 ... 140 °F, <85% RH, non-condensing
Dimensions: 132 x 70 x 33 mm / 5.2 x 2.7 x 1.3"
Weight: 150 g / 5.3 oz
Vibration sensor specifications
Sensitivity: 100 mV/g
Cable length: ca. 1.5 m / 4.9 ft
Connection: 2 pin MIL-DTL-5015
Case material: 316L stainless steel
Dimensions: Ø25 x 53 mm / Ø0.98 x 2.08"
Weight: 86 g / 3.0 oz
Magnetic holder specifications
Diameter: 30 mm / 1.18"
Magnetic force: 20 kg / 44 lbs
Connection thread: 1/4"-28 UNF female
Smallest radius: 20 mm / 0.78"
Infrared and RPM sensor specifications
Cable length: ca. 1.2 m / 3.9 ft
Dimensions: Ø16 x 83 mm / Ø0.63 x 3.26"
Weight: 75 g / 2.6 oz
Delivery scope

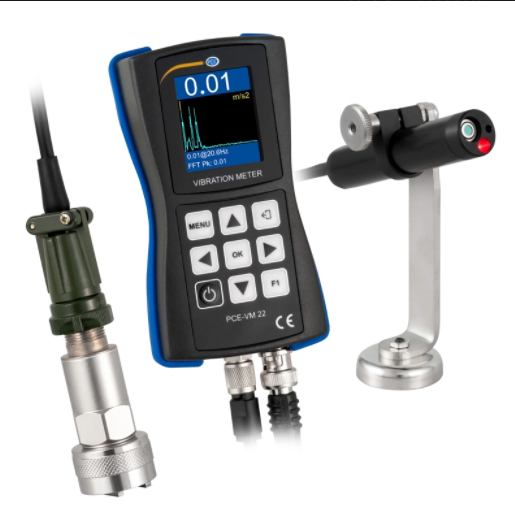

1 x Accelerometer PCE-VM 22
1 x Vibration sensor with connection cable and magnetic holder
1 x Infrared sensor with speed sensor
1 x Magnetic holder
1 x USB charging adapter
1 x Micro USB cable
1 x Transport case
1 x Instruction manual
