PCE VT 3800-ICA Vibration Meter (0~399,9 m/s²; 0~399,9 mm/s; 0~3,9 mm; ISO Calibration Cert.)

ManufacturerPCE(View more products from this manufacturer)

ModelVT 3800-ICA

P/NPCE-VT 3800-ICA

OriginGermany

USD 1,524.26

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

- Measuring range: Acceleration

0.0 ... 399.9 m/s² / 0.0 - 15744 in/s²

Resolution: 0.1 m/s² / 3.94 in/s²

Accuracy @ 160 Hz: ±2 %

Frequency range: 10 Hz ... 10 kHz; 1 kHz ... 10 kHz

- Measuring range: Velocity

0.00 ... 399.9 mm/s / 0.00 - 15.74 in/s

Resolution: 0.1 mm/s / 0.0039 in/s

Accuracy @ 160 Hz: ±2 %

Frequency range: 10 Hz ... 1 kHz

- Measuring range: Displacement

0.000 ... 3.9 mm / 0.000 - 0.154 in

Resolution: 1 µm / 39.4 µin

Accuracy @ 160 Hz: ±2 %

Frequency range: 10 Hz ... 200 Hz

Measurement parameters: RMS, Peak, Peak-Peak; Crest factor

Manual memory: 99 folders with 50 measured values each

Data logger:

Various start/stop triggers

Measurement interval between 1 s … 12 h

50 memory locations with 43200 measured values each

Units: can be switched to metric / imperial

Display: 2.48" LC display

Menu languages: English, German, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese

Power supply:

internal: LiPo battery (3.7 V, 2500 mAh)

external: USB 5 VDC, 500 mA

Operating time: ca. 15 … 20 h (depending on display brightness)

Operating and storage conditions:

temperature: -20 ... +65 °C / -4 ... 149 °F

humidity: 10% RH ... 95% RH, non-condensing

Dimensions: 165 x 85 x 32 mm / 6.5 x 3.3 x 1.3"

Weight: 239 g / 8.4 oz

-Technical Data Vibration Sensor:

Resonance frequency: 24 kHz

Transverse sensitivity: ≤ 5%

Destruction limit: 5000 g (peak)

Operating and storage temperature: -55 °C … +150 °C / -67 °F ... 302 °F

Housing material: stainless steel

Mounting thread: ¼ - 28“

Dimensions: Ø 17 x 46 mm / 0.67 x 1.8"

Weight (without cable): 52 g / 1.8 oz

Delivery Scope:

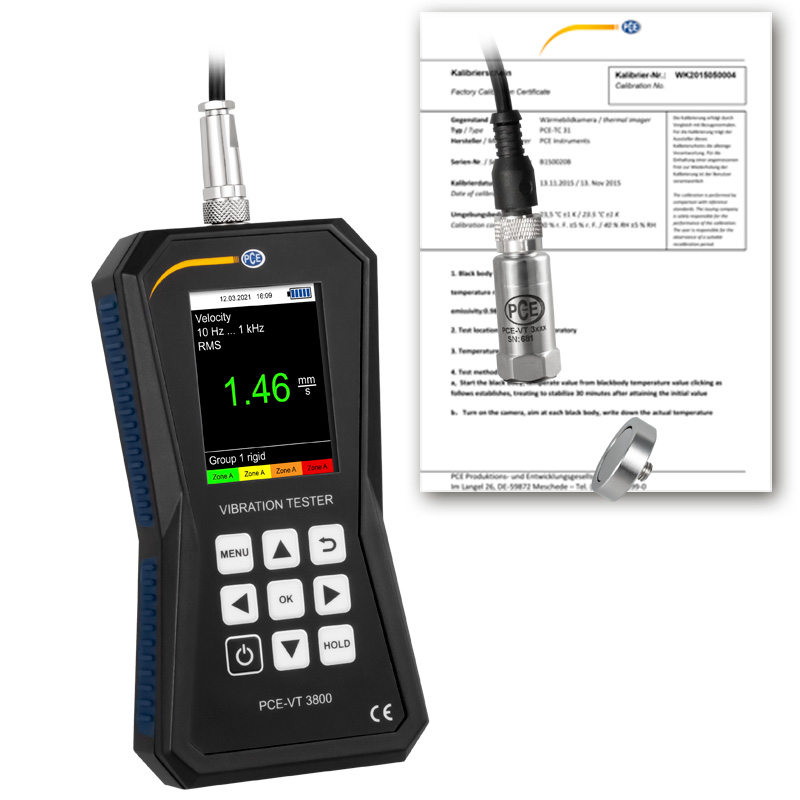

1 x Vibration Meter PCE-VT 3800-ICA

1 x Sensor

1 x Spiral cable

1 x Magnetic adapter

1 x Micro USB cable

1 x USB stick with software and instructions

1 x Quick start guide

1 x Service bag

1 x ISO Calibration Certificate
