Specification
Measurement range:1 ... 30 mm / 0.04 ... 1.18 in
Measurable materials:Ferrous and non-ferrous metals, steel, plastic, glass, gold, and other homogeneous materials (without air pockets)
Frequency:5 MHz
Resolution:0.1 mm / 3.94 mil
Calibration:3.0 mm / 0.1 in integrated steel block
Accuracy:± (0.5% + 0.1 mm) at 0.8 ... 99.9 mm / 0.03 ... 3.9 in
± (1% + 1 mm) at 100 ... 300 mm / 3.9 ... 11.8 in
Sound velocity range:1000 ... 9999 m/s (freely adjustable, depending on the material to be tested)
Sound velocity resolution:1 m/s
Display:4 digit LCD display
Surface temperature for probe:0 ... 50°C / 32 ... 122°F
Measuring head diameter:7 mm / 0.27 in
Measuring head shape:Square
Operating temperature range:0 ... 40°C / 32 ... 104°F
Ambient humidity:20 ... 90% r.H.
Battery status:Low power indicator
Power supply:2 x 1. V AA batteries
Battery life:250 h
Auto shutdown:For battery conservation (after about 3 minutes without operation)
Dimensions:127 x 67 x 30 mm / 5 x 2.64 x 1.18 in (H x W x D)
Weight:270 g / 9.5 oz incl. batteries
Delivery contents

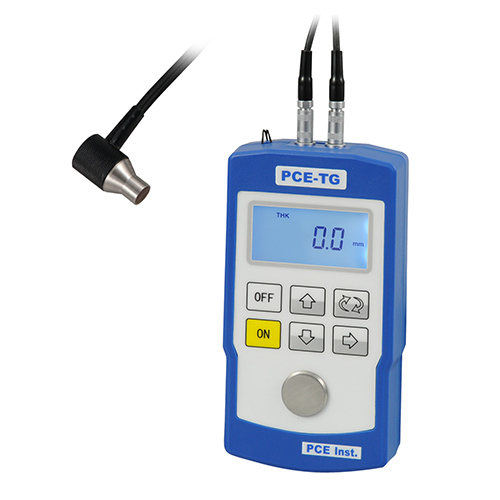

1 x PCE-TG 120 Ultrasonic Thickness Gauge
1 x High-temperature contact transducer with 1 m (3.3 ft) cable
2 x Batteries
1 x Bottle of contact gel
1 x Carrying strap
1 x Carrying case
1 x User manual
