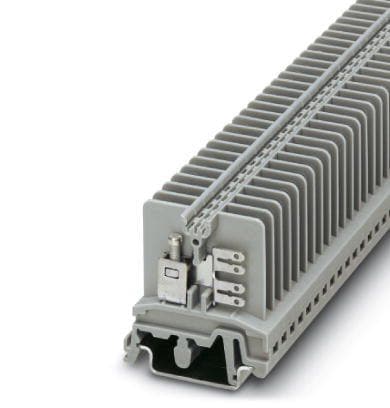

PHOENIX CONTACT 0270018 Feed Through Terminal Block USK 4-FSR(4-2.8-0.8)

Color: Gray

Width: 6.2 mm

Height: 45.49 mm

Length: 42.5 mm

Unit Weight: 7.620 g

Current Rating: 32 A

Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)

Voltage Rating: 800 V

Wire Gauge Max: 12 AWG

Wire Gauge Min: 24 AWG

Housing Material: Polyamide (PA)

Wire Gauge Range: 24 AWG to 12 AWG

Connection Method: Spade

Flammability Rating: UL 94 V-2

Number of Positions: 2 Position

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 60 C
