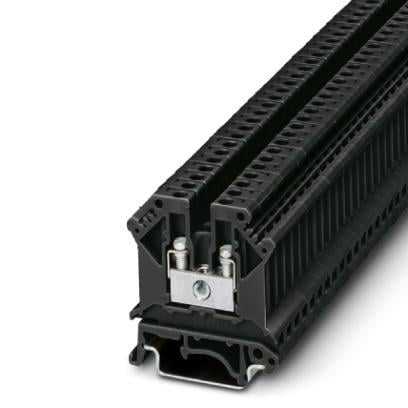

PHOENIX CONTACT 0719168 Feed Through Terminal Block UK3 N BK

Color: Black

Pitch: 5 mm

Width: 5.2 mm

Height: 47 mm

Length: 42.5 mm

Compliance: UR, GOST-R

Unit Weight: 7.064 g

Current Rating: 24 A

Mounting Style: DIN Rail (NS 32, NS 35/7.5, NS 35/15)

Voltage Rating: 600 V

Wire Gauge Max: 12 AWG

Wire Gauge Min: 24 AWG

Housing Material: Polyamide (PA)

Connection Method: Screw

Flammability Rating: UL 94 V-0

Number of Positions: 2 Position

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 60 C
