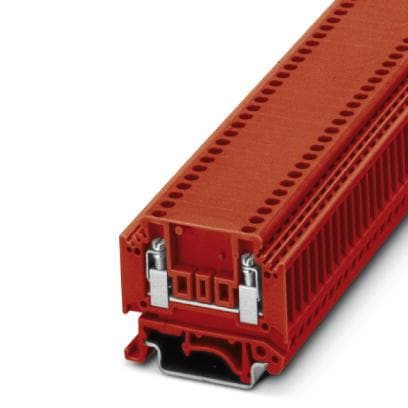

Color: Red
Width: 5.2 mm
Height: 44.9 mm
Length: 46.2 mm
Unit Weight: 8.800 g
Current Rating: 16 A
Mounting Style: DIN Rail (NS 32, NS 35/7.5, NS 35/15)
Number of Rows: 1 Row
Voltage Rating: 400 V
Wire Gauge Max: 12 AWG
Wire Gauge Min: 24 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 24 AWG to 12 AWG
Connection Method: Screw
Flammability Rating: UL 94 V-0
Number of Positions: 1 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
