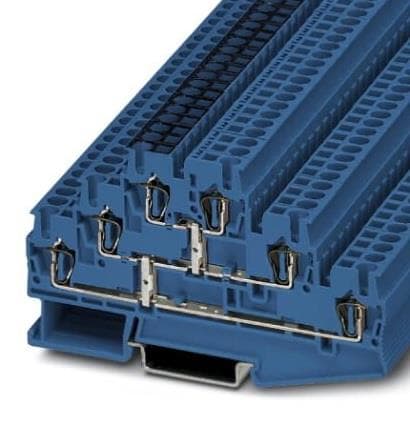

PHOENIX CONTACT 1025465 Multi-Level Terminal Block ST 2 5-3PV BU

Color: Blue

Width: 5.2 mm

Height: 65.5 mm

Length: 99.5 mm

Unit Weight: 18.630 g

Current Rating: 20 A

Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)

Number of Rows: 1 Row

Voltage Rating: 500 V

Wire Gauge Max: 12 AWG

Wire Gauge Min: 28 AWG

Housing Material: Polyamide (PA)

Wire Gauge Range: 28 AWG to 12 AWG

Connection Method: Spring Cage

Flammability Rating: UL 94 V-0

Number of Positions: 6 Position

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 60 C
