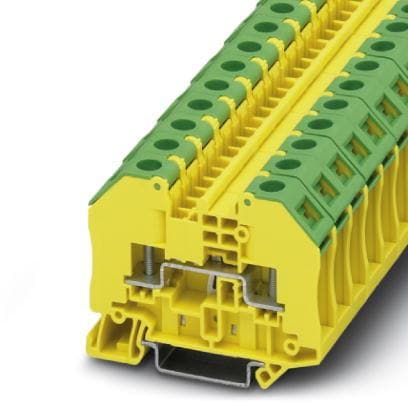

PHOENIX CONTACT 3049411 Ground Terminal Block RT 3 PE 14-26AWG GRN/YEL
ManufacturerPHOENIX CONTACT(View more products from this manufacturer)
Model3049411
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Color: Green, Yellow
Width: 12.3 mm
Height: 58.5 mm
Length: 66 mm
Unit Weight: 27.700 g
Current Rating: 24 A
Mounting Style: DIN Rail (NS 35/7.5, NS 35/15)
Voltage Rating: 1 kV
Wire Gauge Max: 14 AWG
Wire Gauge Min: 26 AWG
Housing Material: Polyamide (PA)
Wire Gauge Range: 26 AWG to 14 AWG
Connection Method: Bolt
Flammability Rating: UL 94 V-0
Number of Positions: 2 Position
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 60 C
