Function and Applications:
Modern trinocular mikroscope for a broad range of applications and users with exceedingly good price/perfomance ratio.
Benefits:
Ideal as teacher microscope
1000x magnification
Mechanical stage
Long-life and very bright LED illumination
Resists to tilting on the table
Equipment and Technical Data:

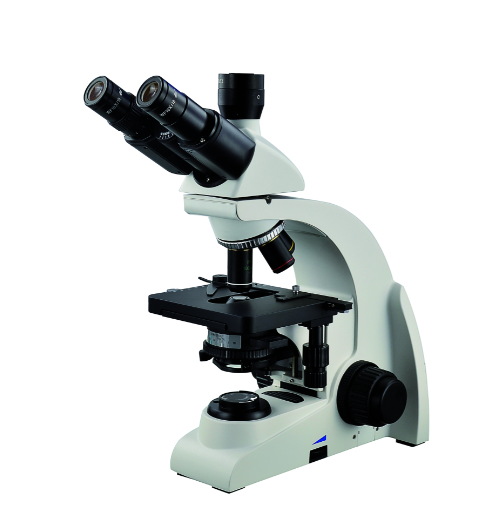

Trinocular microscope with 1000x magnification and infinity optics
UCIS Infinity independent achromatic optical system
Siedentopf viewing head, inclined 30°, 360° rotatable, 48-75 mm interpupillary distance, +/-5 diopter adjustment
WF10/18 mm Plan eyepieces with high eye point
Quintuple nosepiece with infinity achromatic objectives 4x, 10x, 40x(S) and 100x(S) objectives
Abbe condenser N.A. 1.25 with iris diaphragm, phase-contrast slide holder, handwheel lift, condenser bracket with condenser center adjustment
Mechanical stage size: 141 x 131 mm, moving range 78 x 53 mm
Low position coaxial coarse and fine focus mechanism with markings on the fine focus knobs
Illumination: 3W LED (color temperature 5000 K), adjustable
Integrated power supply 100…240 V, 50/60 Hz
Includes C-mount adapter (1X) and dust cover
Dimensions: 39 cm x 23 cm x 28 cm
Weight: 8.6 kg
