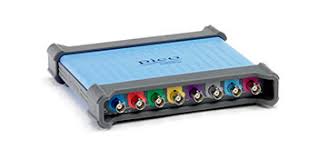

PICO PicoScope 4424A High-resolution deep-memory oscilloscope (4 channels, 20MHz, 12bits)

Input channels: 4

Bandwidth (−3 dB): 20 MHz (50 mV to 50 V ranges)

                  10 MHz (10 mV and 20 mV ranges)

Rise time :17.5 ns (50 mV to 50 V ranges)

           35.0 ns (10 mV and 20 mV ranges)

Vertical resolution:  12 bits

Input ranges: ±10 mV to ±50 V full scale, in 12 ranges

Input sensitivity: 2 mV/div to 10 V/div (10 vertical divisions)

Maximum sampling rate: 80 MS/s (1 to 4 channels in use)

                       40 MS/s (5 to 8 channels in use)

Trigger modes: None, auto, repeat, single, rapid (segmented memory)

Standard waveform: Sine, square, triangle, DC voltage, ramp, sinc, Gaussian, half-sine, white noise, PRBS

SPECTRUM ANALYZER

Frequency range: DC to 20 MHz

PC connectivity: SuperSpeed USB 3.0 (USB 1.1 and USB 2.0 compatible)

Dimensions (including connectors): 190 x 170 x 40 mm


Pack contents

•PicoScope 4824 oscilloscope

•USB 3.0 cable 1.8 m

•Quick Start Guide

•Software and reference CD
