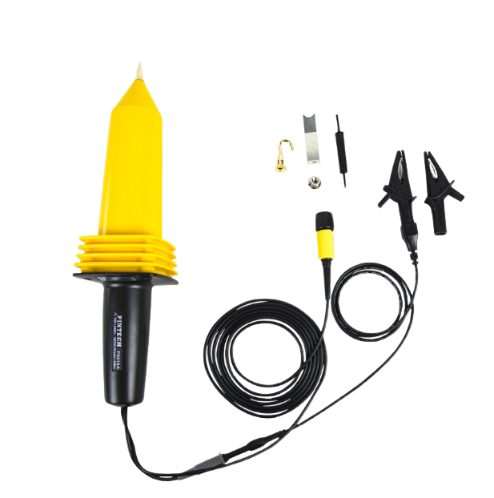

Attenuation Ratio: 1000:1
Impedance: 200MΩ
Input Capacitor: 1.5pF
Adjustable capacitance range: 10pF-35pF
DC+ACpeak: 18kV/30 sec
AC RMS: 12kV/30 sec
The pulse voltage: <12kVp-p
Max loading current: 90µA
Bandwidth(-3dB): DC-100MHz
Rise Time: 3.5ns
Noise: DC>60dB(1kHz); >50dB(1MHz)
Accuracy:
DCV ≤3%
ACV≤3% at 60Hz(0-10kVrms) , 5% at 60Hz(10~20kVrms)
Operation Temperature: -10～55℃
Operation Humidity: ≤85%RH
Size(mm): 80x80x320
Weight: 460g
