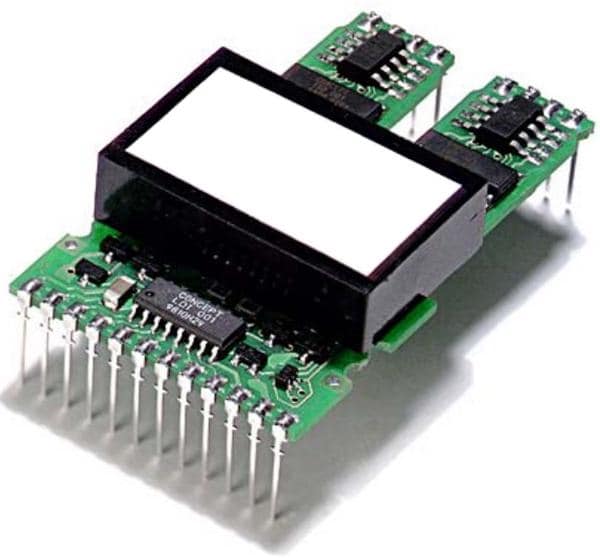

Power Integrations 2SD106AI-17 UL Half-Bridge 2-Ch Scale-1 6A IGBT Driver 1700V

Fall Time: 80 ns

Rise Time: 100 ns

Unit Weight: 40.658 g

Output Power: 2 W

Configuration: Inverting

Mounting Style: Through Hole

Output Current: 6 A

Number of Drivers: 2 Driver

Number of Outputs: 2 Output

Input Voltage - Max: 16 V

Input Voltage - Min: 0 V

Supply Voltage - Max: 15.5 V

Supply Voltage - Min: 14.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Collector- Emitter Voltage VCEO Max: 1.7 kV
