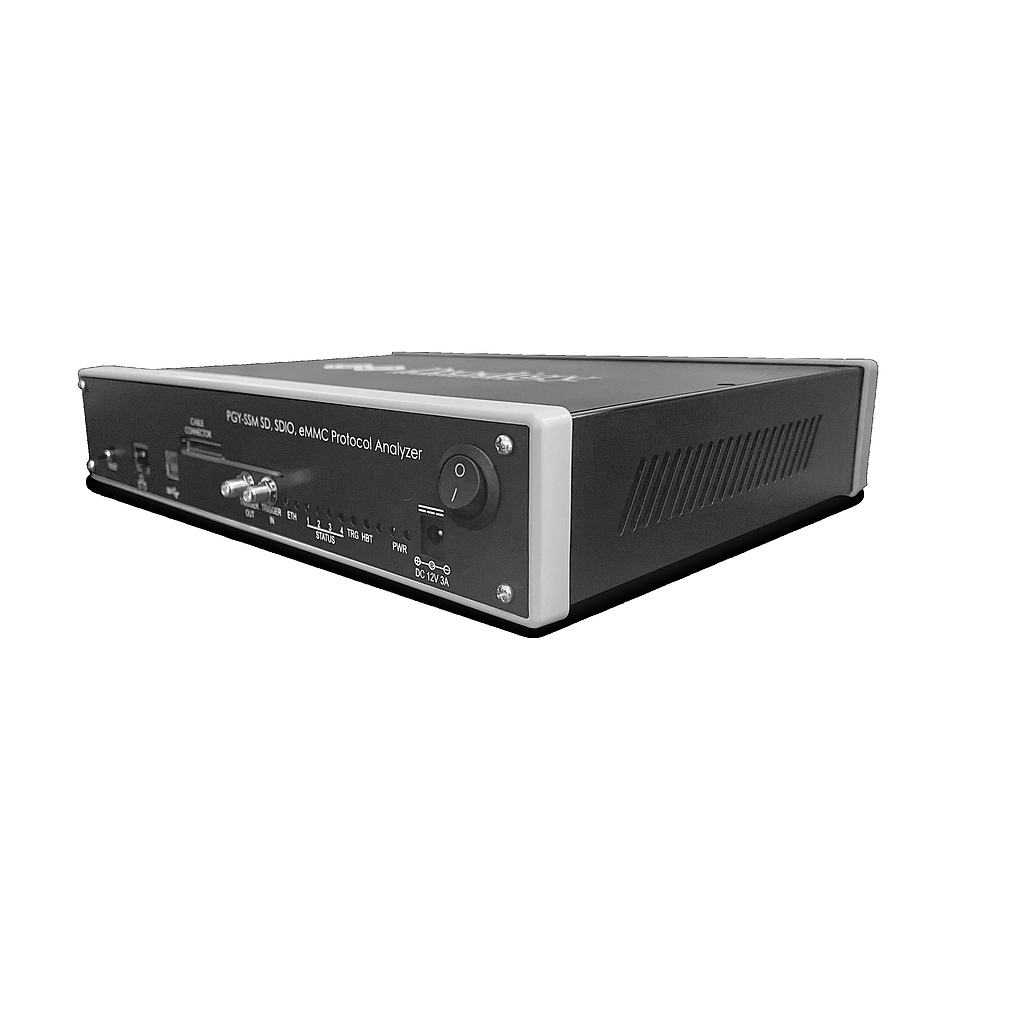

Prodigy Technovations PGY-SSM SD/SDIO/eMMC Protocol Analyzer (SD 3.0, SD3.0, SDIO 4.0, eMMC 4.42, 4.51, 5.0 and 5.1)

Interfaces Supported: SD3.0 (UHS-I), SDIO3.0, and eMMC 4.41/4.51/5.0/5.1 SpecificationsProtocol Decode

Command, Response, CRC, Data, Boot Data, Arguments, Deviceregisters

Data Decode: 1 bit, 4 bit, 8 bit SDR, or 4,8 bit DDR

Protocol Test: Protocol Integrity, CRC Errors, Timing values, Data CRC Errors, Reserved commands

Operating Voltage levels: 1.2V, 1.8V, 3.3V

Storage Capability: Continuous streaming of protocol activity up to 30GB.

Capture Mode: Manual Run/Stop, Time-specific

Capture Duration time: 1 sec to 5 hours

Trigger on: Command, Response, CRC errors, Sequential trigger

Trigger Actions: Capture data and/or trigger out signal

Signal Input: Digital Signal input to mark the activities in Protocol activity

Host System Interface: USB3.0 or GbE interface

Host Machine Minimum Requirements: Microsoft Windows® 8, Windows 7, 16GB of RAM. Storage with at least 50 GB HDD space for storing the acquireddata.Display with resolution of at least 1024×768
