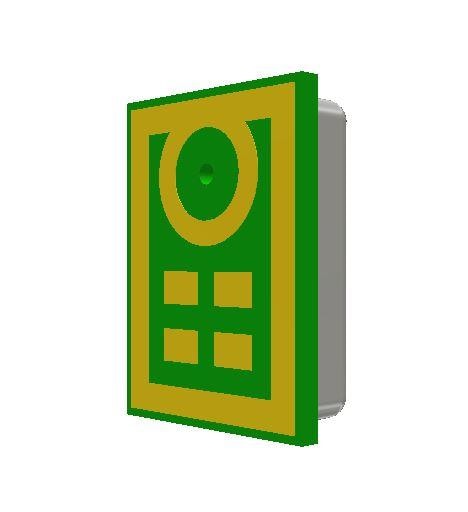

PUI Audio DMM-4026-B-R Digital MEMS MICROPHONE OMNI -26 DB 1.8VDC 1000uA
Manufacturer: PUI Audio Model: DMM-4026-B-R - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Shape: Rectangular
Width: 3 mm
Length: 4 mm
Port Type: Bottom
Dimensions: 4 mm x 3 mm x 1 mm
Technology: Si
Output Type: Digital, PDM
Sensitivity: - 26 dB
Mounting Style: SMD/SMT
Frequency Range: 20 Hz to 18 kHz
Termination Style: Solder
Supply Voltage - Max: 3.6 VDC
Supply Voltage - Min: 1.5 VDC
Directional Properties: Omnidirectional
Operating Supply Current: 450 uA, 1 mA
Operating Supply Voltage: 1.8 VDC
SNR - Signal to Noise Ratio: 61 dB, 63 dB
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 40 C
