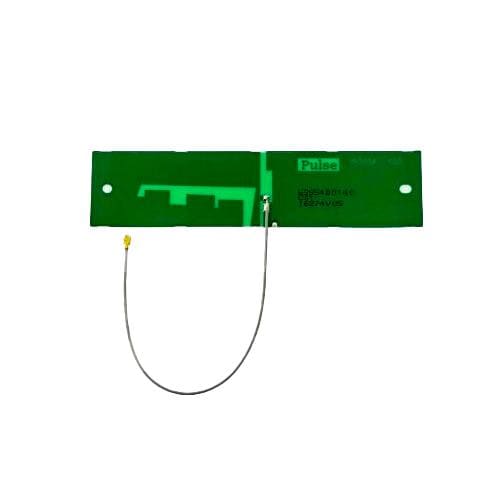

Gain: 1.9 dBi, 2.5 dBi, 3.2 dBi, 3.3 dBi, 3.5 dBi
Style: T-Bar
Width: 30 mm
Height: 0.2 mm
Length: 120 mm
Impedance: 50 Ohms
Cable Type: 384 mm RF1.13
Application: Cellular Applications, Satellite, Wireless Applications
Polarization: Vertical
Power Rating: 5 W
Mounting Style: Adhesive Mount
Number of Bands: 5 Band
Center Frequency: 850 MHz, 900 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2400 MHz,3550 MHz, 5600 MHz
Mechanical Style: PCB Trace
Maximum Frequency: 2.69 GHz
Minimum Frequency: 698 MHz
Termination Style: Connector
Protocol - Sub GHz: IoT, ISM, RFID, U-NII
Antenna Connector Type: SMA Female
Protocol - WiFi - 802.11: 802.11, LoRaWAN, SigFox, WiFi, WLAN
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Cellular, NBIoT, LTE: 2G/3G/4G/5G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
