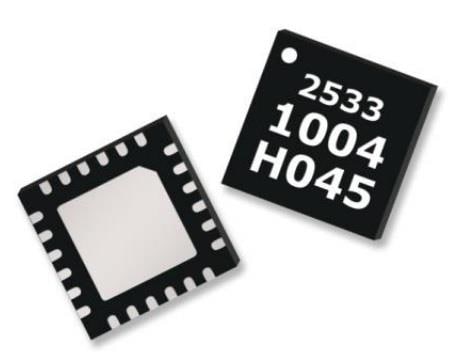

Qorvo TGA2533-XCC-500-SM Power Amplifiers PA
Manufacturer: Qorvo Model: TGA2533-XCC-500-SM - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Gain: 27 dB
Unit Weight: 9.770 g
Mounting Style: SMD/SMT
Test Frequency: 12.7 GHz to 13.3 GHz, 14.4 GHz to 15.4 GHz
Input Return Loss: 13 dB
NF - Noise Figure: 7 dB
Operating Frequency: 12.5 GHz to 15.5 GHz
Pd - Power Dissipation: 17.9 W
Operating Supply Current: 1.3 A
Operating Supply Voltage: 6 V
P1dB - Compression Point: 33 dBm
OIP3 - Third Order Intercept: 43 dBm
