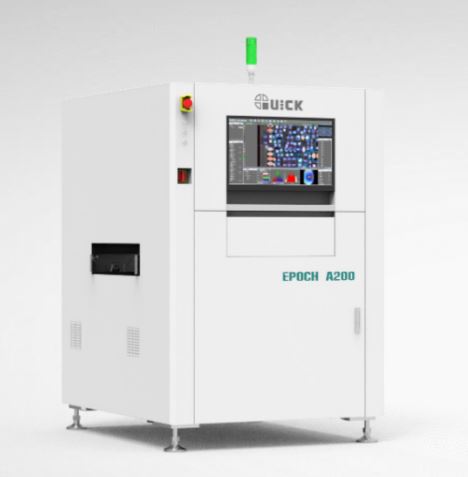

Inspected PCB: Post wave soldering, pre/post selective soldering, and wave soldering final inspection process
Optical imaging system:
Camera: 5 MP/12MP high-speed camera
Light source: Multi-angle high white light
Optical resolution: 10μm 15μm 20μm
Inspection speed: Scan speed of 320mm/S Scan speed of 430mm/S Scan speed of 570mm/S
Programming mode: Manual programming, CAD data import, AI programming
Defect inspection:
Component defect Deviation, missing parts, skew, tombstoning, inverted, overturned, wrong parts, damage, polarity
Soldering joint defect Icicle, hole, solder bead, solder pad with less/more solder, bridging, warping, gold finger pollution/scratches
X-Y-Z axis control system: High-precision ball screw drive
X-Y-Z axis control accuracy: 10 μm
PCB carrier size: 50×50mm(Min)～ 470×510mm(Max)
PCB curvature: < 5mm or 2% of PCB diagonal length
PCB measurable thickness: 0.6-5 mm
PCB conveyor height: 880-920 mm
PCB flow direction: Left in and right out, right in and left out (factory setting)
Conveyor loading weight: 25 kg
Conveyor width adjustment/conveying: Automatic width adjustment, belt conveying
Height limit of passable component:
Top: 75 mm
Bottom: 28 mm
Side: 3 mm
Weight: About 900kg
Machine sizes: 1000*1600*1650mm
Power requirements: 200-240 V, single phase, 50/60 Hz, 3 kVA
Air source: 5-6 bar
Machine safety: Meet CE standards
Software :Offline programming software, maintenance station & SPC management system (optional), deep learning asystem (optional), barcode system (optional)
