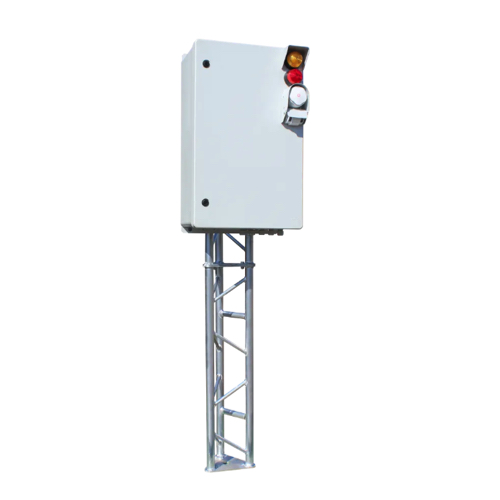

Radmetron РМ5000КМ-01 Radiation Portal Monitors (60 keV - 3 MeV; 0.1 - 30 μSv/h)

Energy range of the measures of photon radiation: 60 keV - 3 MeV

Ambient dose equivalent rate (ADER) of photon radiation measurement range: 0.1 - 30 μSv/h (for energy 662 keV)

Accuracy of photon radiation ADER measurement: ±30 %

False alarm rate: 1/1000

Minimum detectable amounts of radioactive materials, control zone (L x H) 1.5 x 3 m:

Conditions: with 0.5 probability and at least 0.95 confidence probability, gamma radiation background 0.1 μSv/h, source speed 5 km/h

133Ba: 135 kBq

137Cs: 150 kBq

60Co: 78 kBq

Minimum detectable amounts of radioactive materials, control zone (L x H) 3 x 3 m:

Conditions: with 0.5 probability and at least 0.95 confidence probability, gamma radiation background 0.1 μSv/h, source speed 15 km/h

133Ba: 610 kBq

137Cs: 670 kBq

60Co: 350 kBq

Minimum detectable amounts of radioactive materials, control zone (L x H) 3 x 3.5 m:

Conditions (Standard): with 0.5 probability and at least 0.95 confidence probability, gamma radiation background 0.25 μSv/h, source shielded with 1 mm of steel, source speed 10 km/h

133Ba: 1060 kBq

137Cs: 1170 kBq

60Co: 610 kBq

Conditions (Long-dwell scan mode): (Same probability/confidence/background/shielding as above)

133Ba: 185 kBq

137Cs: 205 kBq

60Co: 105 kBq

Minimum detectable amounts of radioactive materials, control zone (L x H) 6 x 3 m:

Conditions (Standard): with 0.5 probability and at least 0.95 confidence probability, gamma radiation background 0.1 μSv/h, source speed 15 km/h

133Ba: 1350 kBq

137Cs: 1470 kBq

60Co: 760 kBq

Conditions (Long-dwell scan mode): (Same probability/confidence/background as above)

133Ba: 230 kBq

137Cs: 250 kBq

60Co: 135 kBq

Number of detection units: 1

PC communication: Ethernet, WiFi

Ingress protection: IP65

Mean recovery time: no more than 60 min

Mean service lifetime: 15 years

Mean time between failures (MTBF), no less than: 20,000 h

Atmospheric pressure: from 84 to 106.7 kPa

Operating temperature:-30 up to +50 °C; With heating module: -50 up to +50 °C

Humidity: 98 % at +40 °C and lower temperature

Power source: AC mains, built-in accumulator

Supply voltage (AC): 90 - 132 V or 180 - 264 V, 47 - 63 Hz

Power consumption:

Without video surveillance and heating: no more than 60 V·A

With video surveillance and heating: no more than 520 V·A

Battery Lifetime: 6 h
