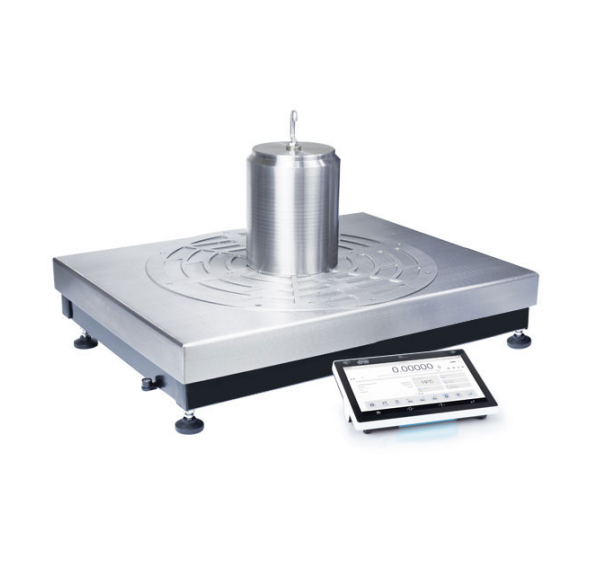

RADWAG HRP 1000.5Y.KB Mass Comparator (1050 kg; 10 g)

Metrological parameters:

E1 Calibration Range: -

E2 Calibration Range : -

F1 Calibration Range: -

F2 Calibration Range: -

M1 Calibration Range : 1000 kg

M2 Calibration Range : 200 – 1000 kg

Maximum capacity [Max] : 1050 kg

Readability [d] : 10 g

Standard repeatability [5% Max] : 6 g

Standard repeatability [Max] : 10 g

Permissible repeatability: 15 g

Eccentricity (tested load): 1d / 5 mm

Electric compensation range : 0 – 1050 kg

Stabilization time: 10 s

Adjustment : internal (automatic)

Physical parameters:

Display : 10″ graphic colour touchscreen

Weighing pan dimensions : 1000×800 mm

Controling device dimensions : 249×170×72 mm

Comparator packaging dimensions without self-centering weighing pan : 1200×1000×440 mm

Packaging dimensions : —

Net weight : 121 kg

Gross weight : 161 kg

Net weight/gross weight (comparator): —

Communication interface:

Communication interface : 2×USB-A, USB-C, HDMI, Ethernet, Wi-Fi,Hotspot

Environmental conditions:

Operating temperature : +15 – +30 °C

Operating temperature change rate : ±2 °C / 12 h

Relative humidity : 40% – 60%

Relative humidity change rate : ±10% / 4 h
