X-axis Travel (mm): 200
Y-axis Travel (mm): 100
Metal table size (mm): 404×228
Glass table size (mm): 260×160
Resolution (μm): 0.5
Indication error (mm): E1XY=(2.5+L/100)
Z-axis Travel (mm): 100
Weight (kg): 175
Dimension (mm): 780×810×1120
Projection screen:
Size (mm): Ф 312
Rotary range: 0~360°
Resolution: 1' or 0.01°
Lens:
- Magnification: 10× (Optional)
Field of view (mm): Ф30
Working distance (mm): 77.7
Max. measuring Height (mm): 90
- Magnification: 20× (Optional)
Field of view (mm): Ф15
Working distance (mm): 44.3
Max. measuring Height (mm): 90
- Magnification: 50× (Optional)
Field of view (mm): Ф6
Working distance (mm): 38.4
Max. measuring Height (mm): 90
- Magnification: 100× (Optional)
Field of view (mm): Ф3
Working distance (mm): 25.3
Max. measuring Height (mm): 90
Power supply: AC 100-240V 50/60Hz. Total power: 400W
Product brief:

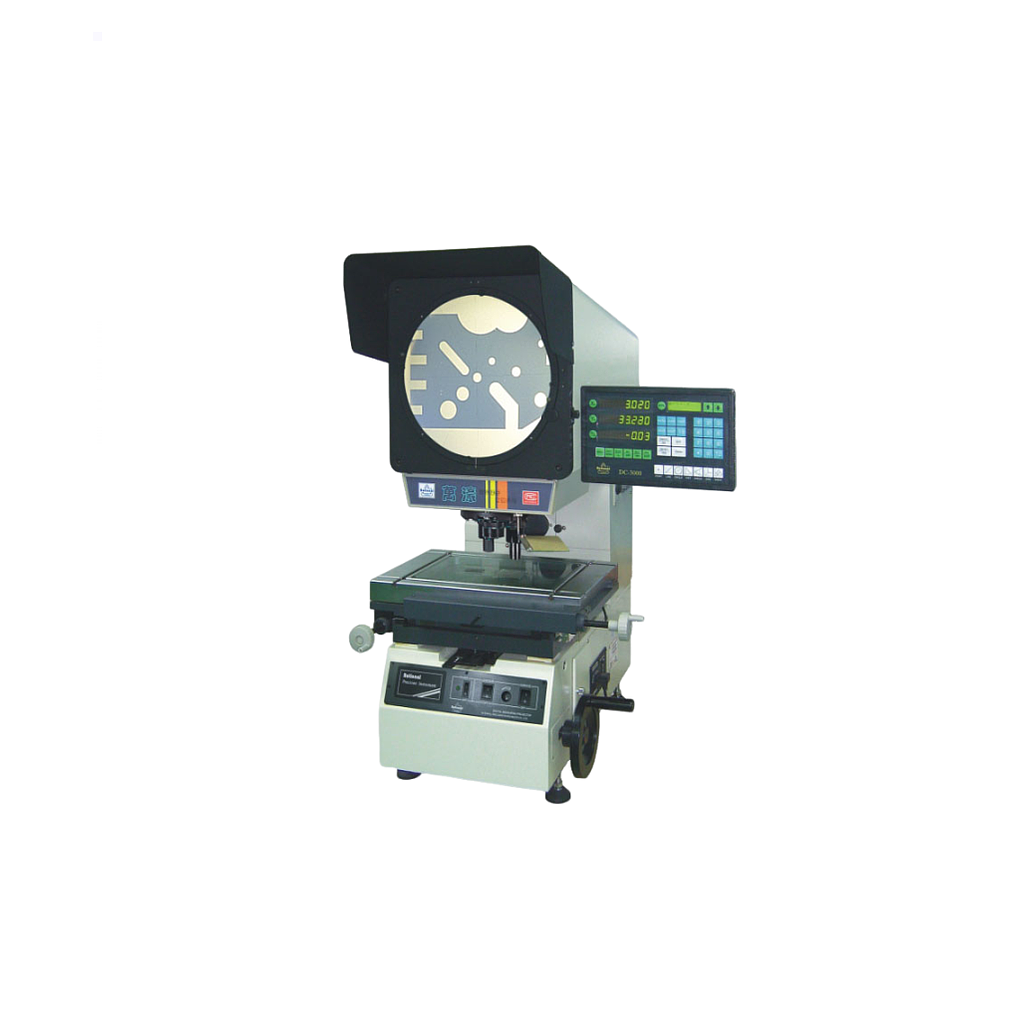

CPJ-3000A/AZ series digital profile projector is an ergonomic and reliable measuring instrument with premium quality. This instrument is equipped with foot-switch and multi-functional data processing system, which is convenient to output data and sample, enabling the user to effectively and sufficiently inspect the measured objects. In addition, the instrument is equipped with rotary plate, which can be installed with 3 lenses. As a result, when magnifies the workpiece required differing magnification, the user can only rotate the rotary plate without replacing another lens, making it more convenient to operate. Adjusting focus is available by ascending and descending the projection tube. Non-ascending-or-descending working table improves the stability, measuring range, and accuracy of the instrument.
