X-axis Travel (mm): 200
Y-axis Travel (mm): 100
Metal table size (mm): 404×228
Glass table size (mm): 260×160
Resolution (μm): 0.5
Indication error (mm): X, Y-axis: (2.5+L/100). Z-axis: 3.5+L/25 (L is the length of the measured object. Unit: mm)
Z-axis motion speed (mm/s): 5, 1, 0.01 (3 modes available)
Z-axis Travel (mm): 100
Weight (kg): 150
Dimension (mm): 670×570×1250
Projection screen:
Size (mm): Ф 312
Rotary range: 0~360°
Resolution: 1' or 0.01°
Lens:
- Magnification: 10× (Optional)
Field of view (mm): Ф30
Working distance (mm): 77.7
Max. measuring Height (mm): 90
- Magnification: 20× (Optional)
Field of view (mm): Ф15
Working distance (mm): 44.3
Max. measuring Height (mm): 90
- Magnification: 50× (Optional)
Field of view (mm): Ф6
Working distance (mm): 38.4
Max. measuring Height (mm): 90
- Magnification: 100× (Optional)
Field of view (mm): Ф3
Working distance (mm): 25.3
Max. measuring Height (mm): 90
Power supply: AC 100-240V 50/60Hz. Total power: 450W
Product brief ：

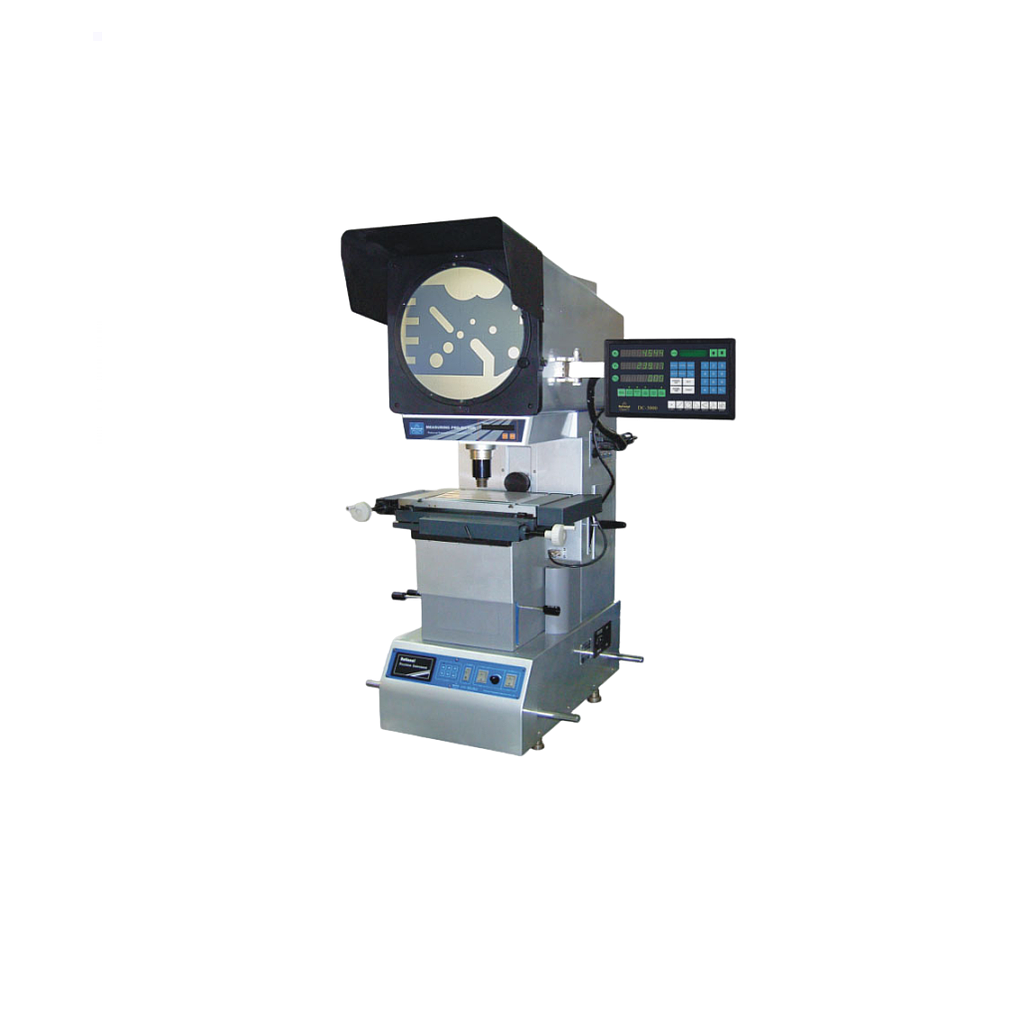

CPJ-3000DZ series digital profile projector, whose Z-axis adopts step motor drive to adjust the focus, and installs a grating counter card, is a measuring instrument that can be measured ladder-shaped parts, greatly improving the work efficiency. The lens is available in 5X, 10X, 20X, 50X, or 50X, in accordance with the actual measured objects.
This instrument, which integrates optics, machinery and electronics, is able to sufficiently carry out direct measurement and comparative measurement for measured workpiece, such as stamping parts, gear, thread, and milling cutter, etc. It is widely used in the fields of machine manufacturing, electronics, mold, meter, etc.
