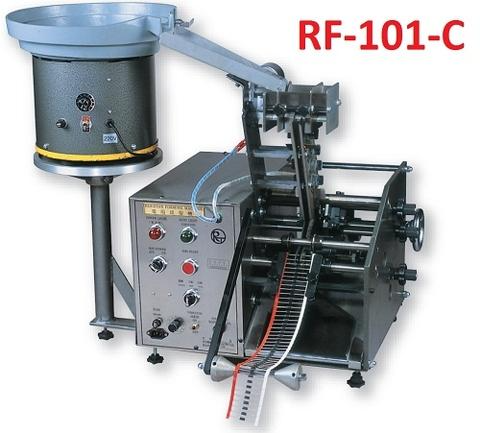

REN THANG RF-101-C Axial Lead Forming Machine
Manufacturer: REN THANG Model: RF-101-C - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
- Power: 110/220 V AC. 60/50HZ
- Dimension: 1050(L), 600(W), 650(H)mm
- Weight: 115 Kgs
- Body length 3.8~20 mm
- Body diameter 2.3~8 mm
- Shoulder 1.2 Min
- Height ( Critical) Fixed at 8 mm or tailor make parameter
- Lead length Adjustable
- Punching Height 2 mm (Fixed)
- Supporting point W + 0.4~0.5 mm
- Pitch A + 2C
- Wire diameter 0.6~ 1.3
- Capacity 110 pcs/Min
