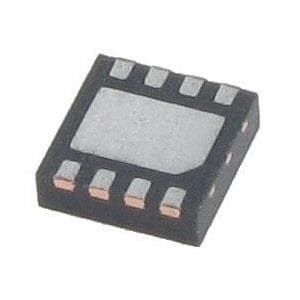

Renesas Electronics F2910NBGP8 RF Switch ICs F2910 F2910
Manufacturer: Renesas Electronics Model: F2910NBGP8 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Width: 2 mm
Height: 1 mm
Length: 2 mm
Technology: Si
Unit Weight: 182.800 mg
Insertion Loss: 1.55 dB
Mounting Style: SMD/SMT
Development Kit: F2910EVBI
Maximum Frequency: 8 GHz
Minimum Frequency: 30 MHz
Number of Switches: Single
Off Isolation - Typ: 26 dB
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 2.7 V
Switch Configuration: SPST
Operating Supply Current: 220 uA
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 55 C
