Width: mm
Height: mm
Length: mm
Fall Time: 200 us
Rise Time: 200 us

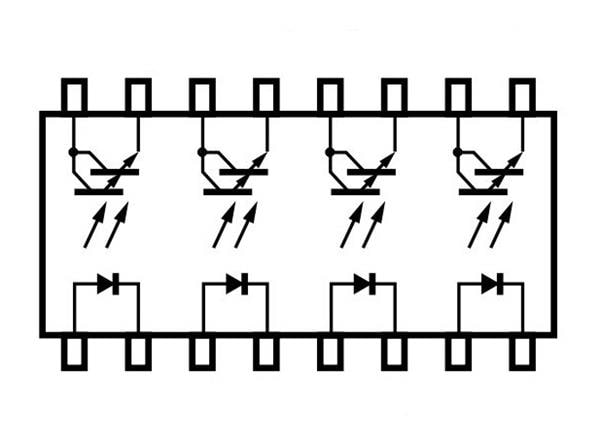

Output Type: NPN Photodarlington
Unit Weight: 9.770 g
Configuration: 4 Channel
Mounting Style: SMD/SMT
Isolation Voltage: 2500 Vrms
Number of Channels: 4 Channel
If - Forward Current: 50 mA
Vf - Forward Voltage: 1.4 V
Vr - Reverse Voltage: 6 V
Current Transfer Ratio: 200 %
Pd - Power Dissipation: 80 mW
Maximum Collector Current: 100 mA
Current Transfer Ratio - Max: 200 %
Current Transfer Ratio - Min: 200 %
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 55 C
Maximum Collector Emitter Voltage: 40 V
Maximum Collector Emitter Saturation Voltage: 1 V
