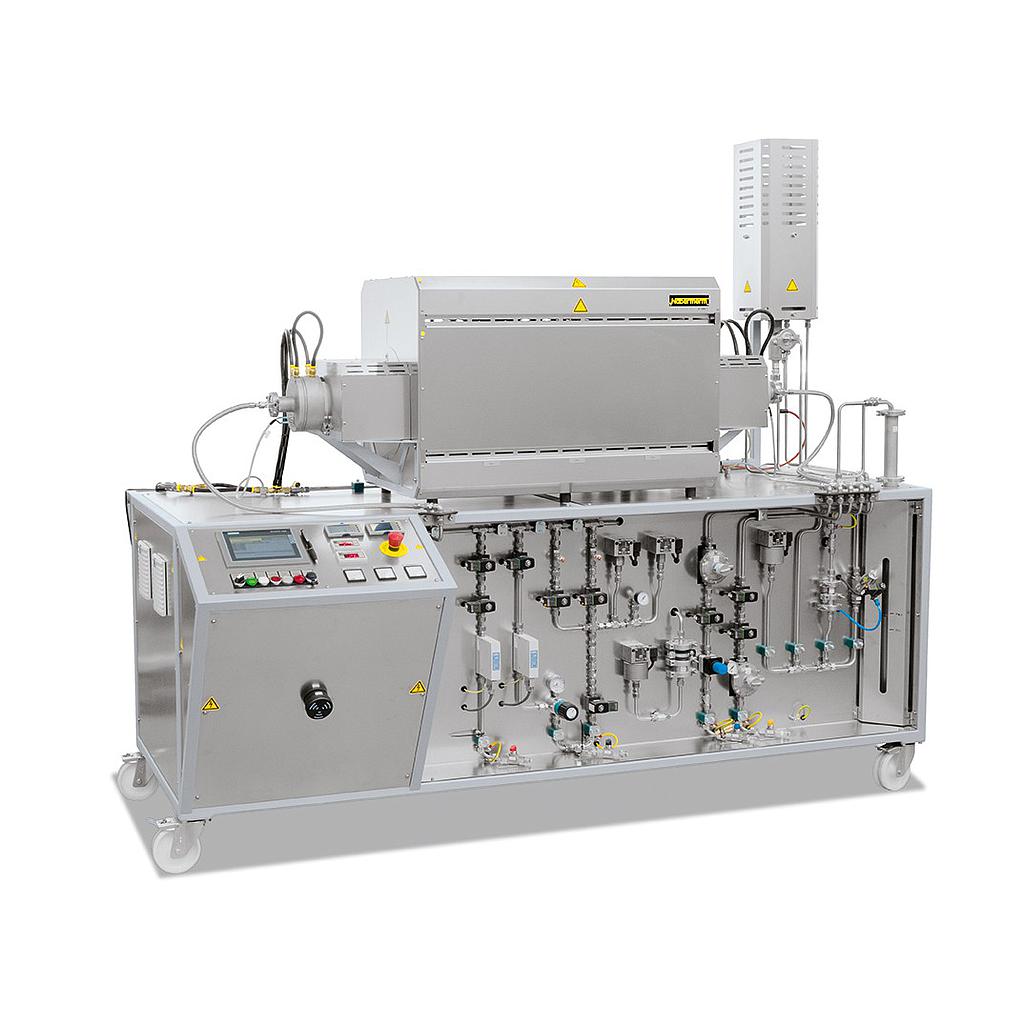

NABERTHERM RHTH 120/600/18 H2 Furnaces
Manufacturer: NABERTHERM Model: RHTH 120/600/18 H2 Origin: Germany Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Outer dimensions furnace approx: 2500 x 1150 x 2130 mm
Weight approx. 600 kg
Power rating furnace approx. 14,4 kW
Power supply furnace 380 V, 3/N/PE, 50 Hz, fuse protection without earth-leakage breaker
Max. tube diameter outer 120 mm
Heated tube length 600 mm
Length constant temperature +− K 200 mm
Tmax 1800 °C
Tmax in working tube approx. 1750 °C
Process gases nitrogen (N2), hydrogen (H2)
Flow rate of process gases 10 – 100 l/h
Operation pressure approx. 30 – 50 mbar
