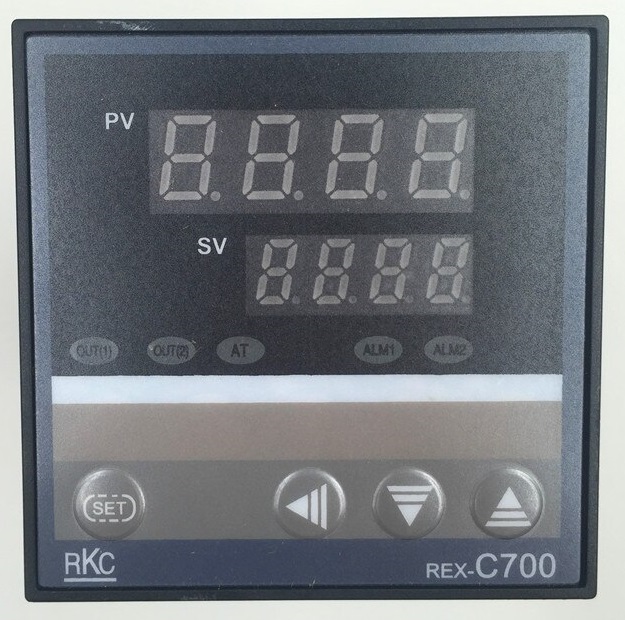

RKC C700 The temperature controller

Dimensions: W72 x H72 x D100

Display: Actual value PV: blue, set value SV: orange

Power supply: 100 – 240 VAC 50/60Hz, 24V AC/DC

Thermostat input: K, J, R, S, B, E, T, N, PLII

RTD: Pt100, JPt100

Voltage: 0-5 VDC, 1-5 VDC

Current: 0 to 20 mA DC, 4 to 20 mA DC

Way out

Control output

- Relay: 250VAC 3A 1c

- Pulse: 0/12 V DC

- Current: DC4-20mA (load 600Ω Max.)

- Triac . output

Load voltage: 100 V AC line, 200 V AC

Pure load resistance

Alarm output: 250VAC, 1A.

Sampling cycle: 0.5 s

Control method

ON/OFF, P, PI, or PD

Feature : Heater failure warning

Low or zero current monitoring (heater failure, oscilloscope control device)

Over current or short circuit

Control loop break warning

Set delay, control loop break alarm

Connection type: Bridge

Installation type: Mounted on the cabinet door, screwed on the electrical cabinet

Accessories: Bracket
