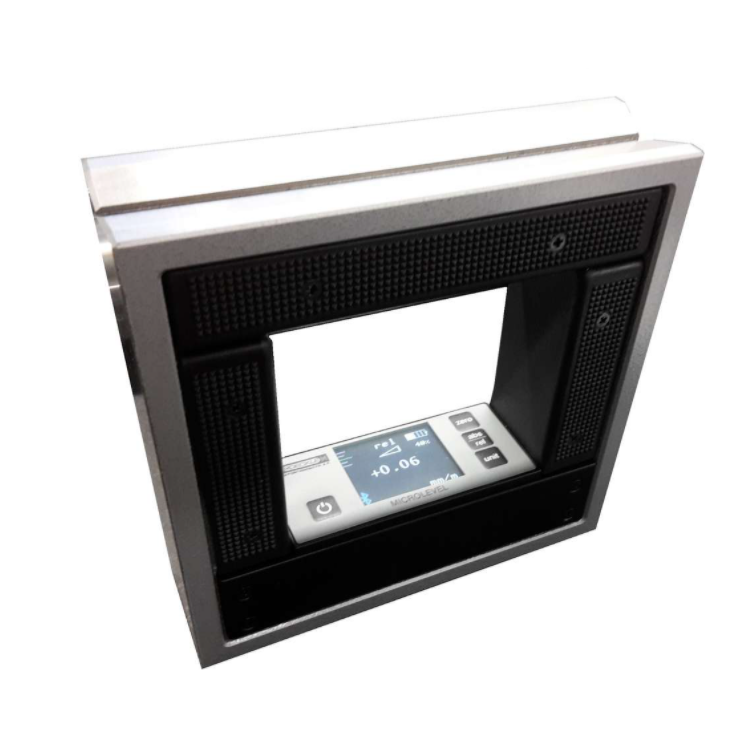

Length: 150 mm
Accuracy: 0.02mm/m
Digit step: 20 µm at unit "mm/m"
Digit step: 1 µm at unit "mm/150mm" (Suitable for flatness measurements, since the length of the spirit level is 200 mm and does not need to be converted)
Measuring range: ±15 degrees (± 261 mm/m)
Error limit according to DIN 2276-2: fmax = 0.04% of MW, min. 0.01% of ME
(ME = measuring range end value, MW = measuring value, fmax = maximum error limit)
Drift: 0.05% / hr of ME
Temperature coefficient: 0.1% of ME per °C
Working temperature: 20 °C ± 5K
Storage temperature: from -30 °C to + 70 °C
Dimensions (LxWxH): 150x150x42 mm
Weight without case: 2,22 kg
Weight within case: 2,94 kg
Li-ion battery: 10h operating time
Measuring surface fine grinding: max. 5μ
CE-compliant and EMC tested
According to DIN 877 and DIN 2276-2
