Full current: 0–20mA Accuracy: ±(Reading×5%+5μA)
Resistive current: 0–20mA Accuracy: ±(Reading×5%+5μA)
Capacitive current: 0–20mA Accuracy: ±(Reading×5%+5μA)
Harmonic current: 0–20mA Accuracy: ±(Reading×10%+10μA)
Voltage reference: Max. 400V RMS Accuracy: ±(Reading×5%+0.5V)
Harmonic voltage: Max. 400V RMS Accuracy: ±(Reading×10%)
Environment: Operating temp.: -10℃~+40℃ Storage temp.: -20℃~+50℃ Fuse: 2A
Relative humidity: ≤85%, non-condensing
Dimension: 252×160×65mm
Weight: Instrument: 5kg (wires and wire box excluded)

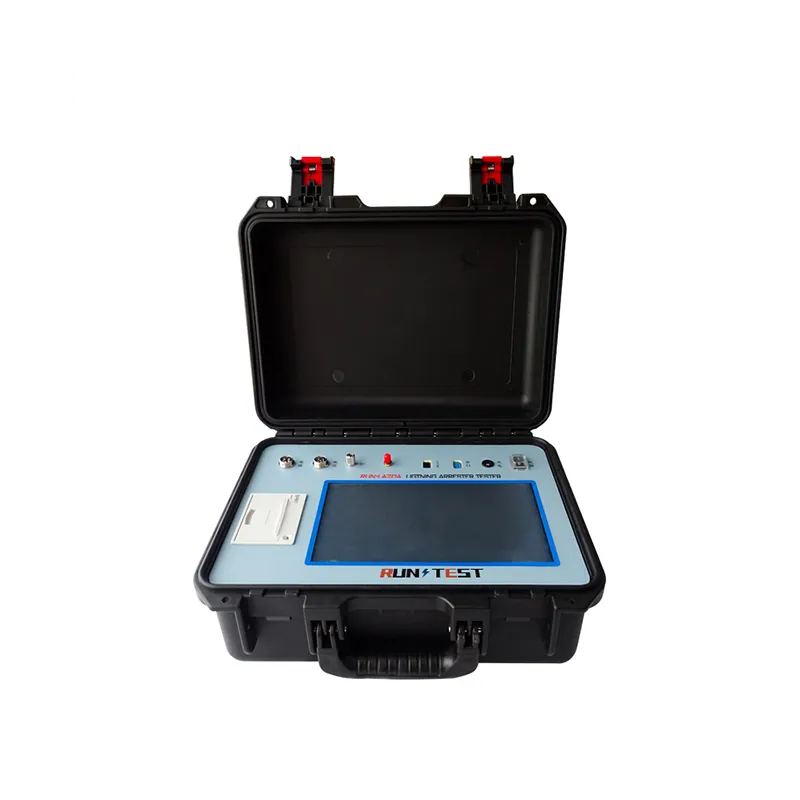

Main features for Zinc Oxide Arrester Test Equipment
1.1024 X 600 LCD Touch-screen
2.High-precision sampling and circuit processing, advanced Fourier Harmonic analysis technology
3.Harmonic content test function, single-phase or three-phase simultaneous measurement
4.Resistive current fundamental wave peak output function
5.Built-in large capacity memory, data storage up to 200 sets.
6.USB port for easy storage and upload.
7.The voltage test line of the instrument is equipped with insurance to prevent wrong wire connection, and the voltage and current plug of the instrument has the function of preventing wrong insertion
8.The instrument is equipped with a wireless module, which can collect voltage wirelessly, and cooperate with the host to perform wireless measurement
9.Built-in micro printer.
10.Built-in large capacity battery, non-stop testing period up to 6 hours
11.Bluetooth function for remote control.
