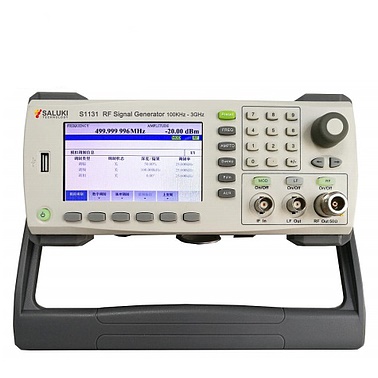

Saluki S1131 RF Signal Generator (100kHz~3Ghz)
Manufacturer: SALUKI Model: S1131 Guarantee: 12 Month - Request a Quotation
- Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Frequency Range 100kHz - 3GHz
Frequency Resolution 1Hz
Aging Rate (Typ.) 1ppm/year
Sweep Modes Step Sweep / List Sweep
Sweep Type Single / Continue
Sweep Point Step Sweep: 2 - 65535, List Sweep: 2 - 1023
Trigger Mode Free, External
Amplitude
Output Power Range -120dBm - 10dBm
Output Power Resolution 0.01dB
Power Accuracy +10dBm to -80dBm: <±0.5dB
-80dBm to -120dBm: <±1dB
VSWR <1.8
RF Output Interface N type 50ohm
LF Output BNC 50ohm
External Ref Input BNC 50ohm
External Pulse Input BNC 50ohm
External Trigger Input BNC 50ohm
10MHz Ref Input BNC 50ohm
USB USB 2.0
LAN 10/100 Base T
Dimension (mm) 340× 230×110
Weight Approx. 5Kg
Operating Temp. 0~ +45℃
Power Supply 110 - 240V 50/60Hz
