Unit Weight: 2.770 g

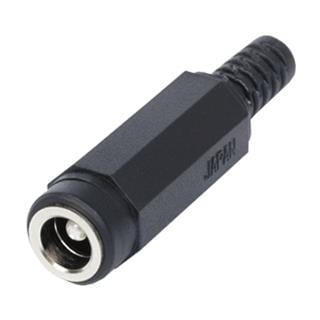

Connector Type: Jack
Contact Gender: Female
Current Rating: 4 A
Mounting Angle: Straight
Mounting Style: Cable
Voltage Rating: 24 VDC
Contact Plating: Nickel
Contact Material: Brass
Housing Material: Polyamide (PA)
Termination Style: Solder Lug
Flammability Rating: UL 94 V-0
Insulation Resistance: 100 MOhms
Inside Contact Diameter: 2.35 mm
Outside Contact Diameter: 5.7 mm
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 25 C
