Main Function and Usage

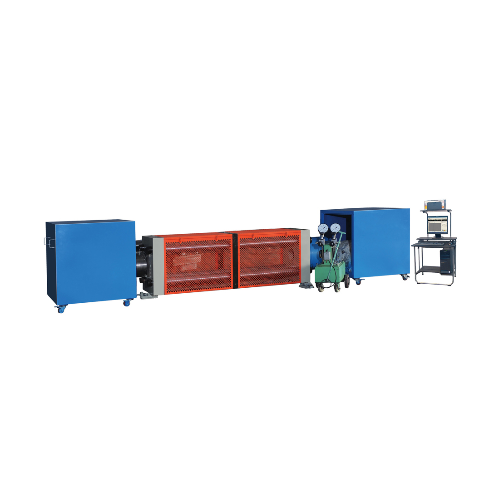

It mainly used in static loading anchoring performance testing of steel strand or anchorage.
It is suitable for the mechanical property experiment in the GB/T14370,Anchorage,grip and coupler for prestressing tendons.
Main Specifications and Technical Parameter
Efficient Measure Range of Testing Force: 2%～100%
Relative Accuracy of Testing Force Value Display: ±1%
Measure Range of Displacement(mm): 0～200
Relative Accuracy of Displacement Value Display: ±1%
Adjustment Range of Force Rate Control: 1MPa～52 MPa
Relative Accuracy of Force Rate Control: ±1%
Relative Accuracy of Displacement Rate Control: ±1%
Range of Force and Displacement Keeping in Control: 0.3%-100%F.S
Relative Accuracy of Force and Displacement Keeping in Control: ±1%
Reliability: ±0.5%
Relative Resolution: ±0.5%
Piston Stroke(mm): 200
Tensile volume(mm): 3200
Overall Dimension(mm): 3200×780×650
Weight (kg): 3000
