Main Function and Usage

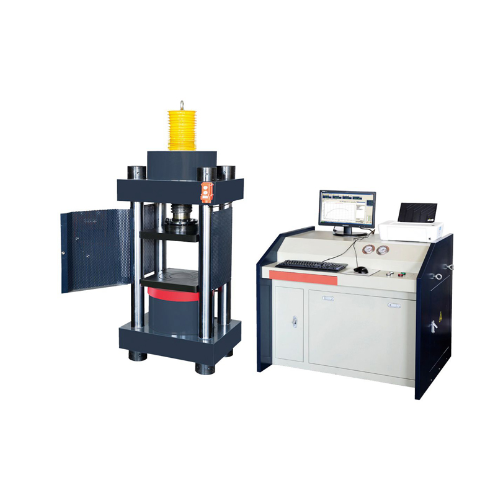

1. It is mainly used in the testing of compression strength of the concrete.
2. Control Method of Testing Rate: Electro-hydraulic closed-loop control
Main Specifications and Technical Parameter
Maximum Testing Force: 2000kN
Measure Range of Testing Force: 2%~100%FS
Relative Accuracy of Value Display of Testing Force: ≤±1%
Adjustment method of Lead Screw: Electronic
Top and Bottom Pressure Plate Dimension (mm)): 370×370
Max.Space of Top and Bottom Pressure Plate(mm): 330
Max.Piston Stroke(mm): 100
Piston Diameter(mm): Φ310
Rated Pressure of the Hydraulic Pump(Amp): 40
Source Power(kW): Three phase 1.1
Overall Dimension(L*W*H)(mm): 700×700×1600
Weight (kg): 1600
