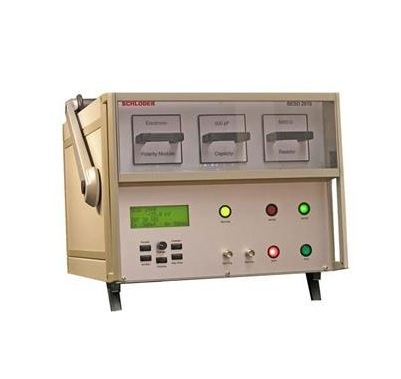

Schloeder SESD 2910 ESD test system (30kV; 150pF-5000pF; 0.5Ω-5000Ω)

Output voltage: 1 kV to 30 kV

Polarity of the output voltage: Positive und negative

Test mode: Air and contact discharge

Polarity changing: Automatically

Capacity module: see options module

Resistor module: see options module

Repetition frequency of the discharge pulses: 1 / 5 / 10 / 30 sec. at contact / relay discharge

Pre-selectable counter: 1 – 9990

Safety circuit: Output for safety switch and warning lamps red /green. The high voltage is discharged internal within 50 ms, in case the safety circuit is interrupt.

Main: 230 VAC, 50 Hz, 3A; 110 VAC, 60 Hz on demand

Dimension:

Width: 34,2 cm

High: 26,5 cm

Depth: 38,0 cm (without grip)

Weight: app. 20 kg
