Resolution: 0.005 mm
Measuring range: 5 mm
Depth of jaw: 50 mm
Bezel diameter: 54 mm
Measuring principle: Self closing
Weight, net (gross): Approx. 300 g (350 g)
Special Features

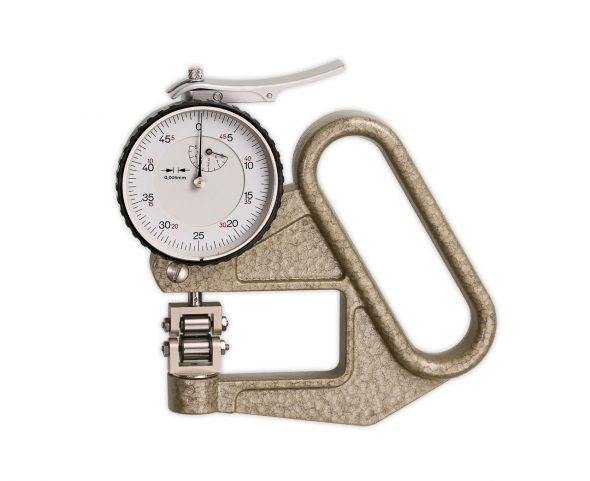

J-50-RS Thickness gauge features an easy to read analog display along with the highest accuracy (resolution 0.005 mm). It is used to measure the thickness of moving objects as yarns, wires and more.
For better guiding the measured material the lower roller (width 8.7 mm) is standard equipped with flanges, optional available without flange measure paper, metal, foils and more.
Max. Line speed 150 m/min
Measuring by spring force
Opening by lifting device (lever) – self closing thickness gauge J-50-RS
