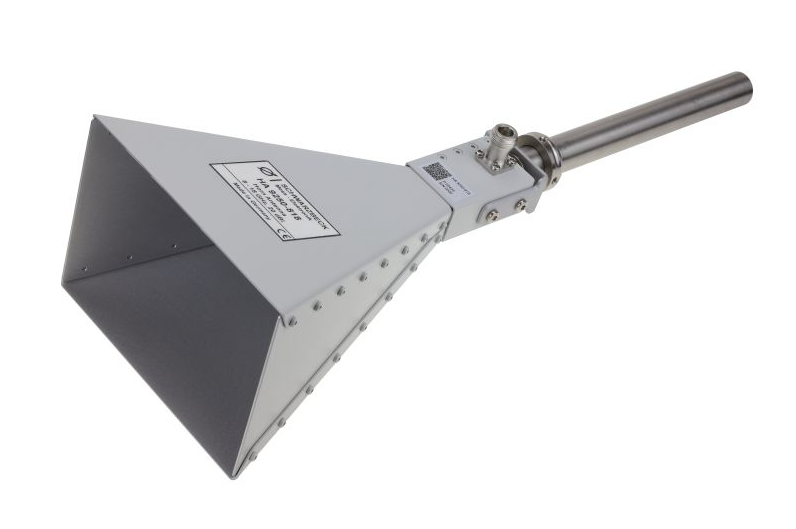

Frequency Range: 8 – 18 GHz
Gain: typ. 20 dBi
Antenna Factor: typ. 29 – 37 dB/m
Nominal Impedance: 50 Ω
Continuous Power: 300 W
VSWR: typ. < 2
3 dB Beamwidth E-plane: typ. 15°
3 dB Beamwidth H-plane: typ. 16°
Housing Material: Aluminium
Housing Dimensions: 156 x 115 x 240 mm
Mounting: D = 22 mm, L = 200 mm
Weight: ca. 0.7 kg
Connector: N
