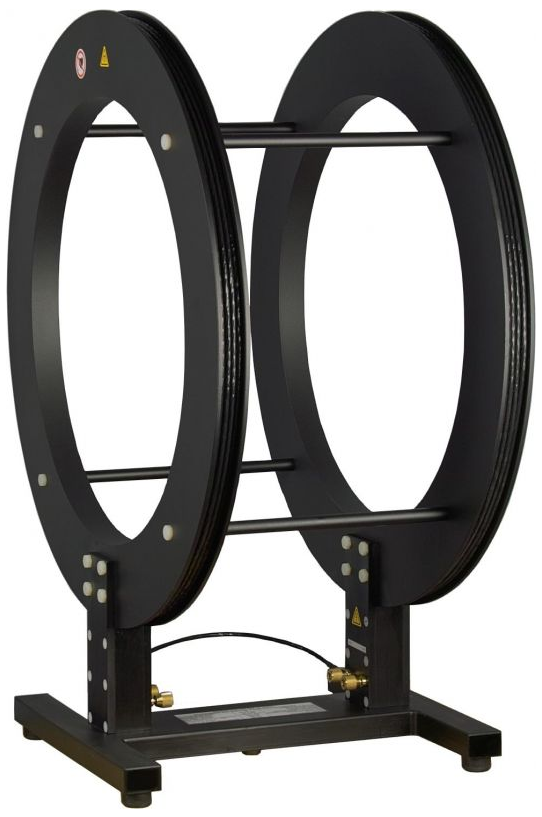

Number of turns (per Coil): 4
Maximum coil current: 55 A, 5 min.
Nominal coil current: 34 A continuous
Coil spacing: 300 mm
Maximum magnetic field strength: 530 A/m, 5 min.
Nominal magnetic field strength: 330 A/m continuous
Magnetic field strength @ 1 A Coil Current: 96.4 A/m
Conversion Current-Fieldstrength (Coil factor): 139.68 dBµA/m
Current required for 1 A/m: 103.7 mA
Conversion Current-Fieldstrength: 19.68 dB/m
Coil diameter: 584 mm
Mechanical dimensions: 0.64 m × 0.79 m × 0.42 m
Max. cubical shaped DuT: 32.5 × 32.5 × 32.5 cm
Terminals: 4 mm banana jacks / Screw terminals
Usable frequency range: DC – 1.5 MHz
Inductance (per coil): 24 µH
Inductance (pair of coils): 95 µH
Resistance (per coil): 15 mΩ
Coil capacitance (pair of coils): 4 pF
Resonance frequency (Pair of coils): > 3 MHz
Weight: 17 kg
