Unit Weight: 12.327 g

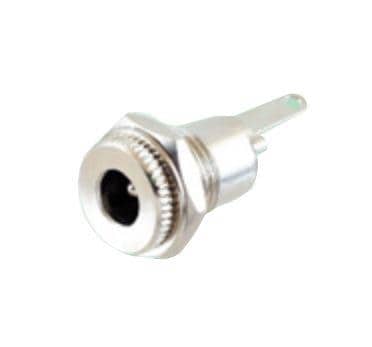

Connector Type: DC Power Jack
Contact Gender: Female
Current Rating: 3 A
Mounting Angle: Straight
Mounting Style: Panel
Voltage Rating: 500 VDC
Contact Plating: Nickel
Contact Material: Brass
Center Pin Length: 7.5 mm
Termination Style: Solder Lug
Flammability Rating: UL 94 V-0
Insulation Resistance: 100 MOhms
Inside Contact Diameter: 2.4 mm
Outside Contact Diameter: 5.9 mm
Maximum Operating Temperature: + 80 C
Minimum Operating Temperature: - 20 C
