Frequency Range : 1 MHz – 4 GHz
Frequency Resolution : 1 kHz
Frequency Accuracy : ±2.5 ppm
Output Power : 0 dBm (typ.)
Measurement Speed : 1.5 ms/point
Return Loss Range : 0 – 60 dB
VSWR Range : 1 – 65
Cable Loss Range : 0 – 30 dB
Distance-to-Fault Range : up to 1500 m
Phase Measurement Range : −180° to +180°
Display : 7-inch touch screen (800 × 480)
Data Interface : USB Host/Device, LAN Port
Memory Capacity : 16 GB (> 2000 traces)
Connector Type : N-type female / Impedance 50 Ω
Battery : 11.1 V 7800 mAh Li-ion (rechargeable)
Power Adapter : AC 110 – 240 V / DC 16 V 3.75 A
Operating Temperature : –10 °C to +50 °C
Storage Temperature : –40 °C to +70 °C
Humidity : 0 – 85 % (non-condensing)
Weight : 2.5 kg Dimensions (L×W×H) : 290 × 175 × 75 mm
Order Information
Standard Package:

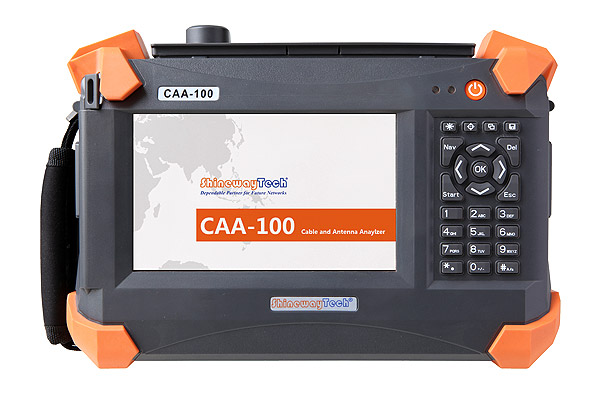

CAA-100 Host, Lithium Battery, AC Adapter, CD (PC Software, User Manual), Carrying Case, ECAL Electronic Calibrator, Test Cable ( 1.5m, N(m)-N(f), DC to 6GHz, 50 Ohm), Adapter ( 7/16 DIN(f)-N(m), DC to 6GHz, 50 Ohm), Quick Reference, Warranty Card.
Optional (Module, Test Cable, Adapter, Calibrator)
