Specification:

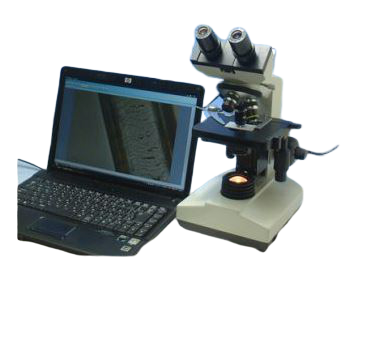

Digital biological microscope is a combination system of a biological microscope and a 1.3mega pixel camera.
It is possible to directly observe the preparation through the microscope’s eyepiece lens or real-time display, observation, and take the images on the computer screen via USB by using the digital biological microscope GR-D8T2.
By using the Observation of sump method can observe bacterium of blood, and plaques etc.,And can use to observe the cuticle of hairs by the expand fields.
Include mechanical stage
Basic measurement such as the distance between 2 points can be done by using the measurement software.
*General Specification
Magnification 40x、100x、400x、1000x
Eyepiece Lens WF10x
Objective Lens 4x、10x、40x、100x
Focus Adjustment Coaxial Coarse/Fine Focus System
Interpupillary Distance 55-75mm
Lens Barrel Binocular
Inclination angle 45°
Stage Mechanical stage: 140x140mm・ Movable range: 75x50mm
Lighting Halogen lamp 6V 20W（Continuous light adjustment）
Power Supply AC100-240V 50/60Hz
Dimension 251x197x380mm
Weight 5.5kg
Supported Operating System WindowsXP/Vista/7/8
*Camera
Number of Pixels 1.3 megapixel
Resolution 1280x1024
Connection USB2.0
