Max output frequency: 4 GHz @ 10G Sampling rate, 5 GHz @ 12G Sampling rate
Number of channels: 4
Sampling rate: 10 GSa/s (interpolation), optional 12 GSa/s (interpolation)
Vertical resolution: 16 bits
Arbitrary waveform length: 2 Gpts, optional 4 Gpts
Display: 7-inch touch screen
Interface: Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11); optional GPIB

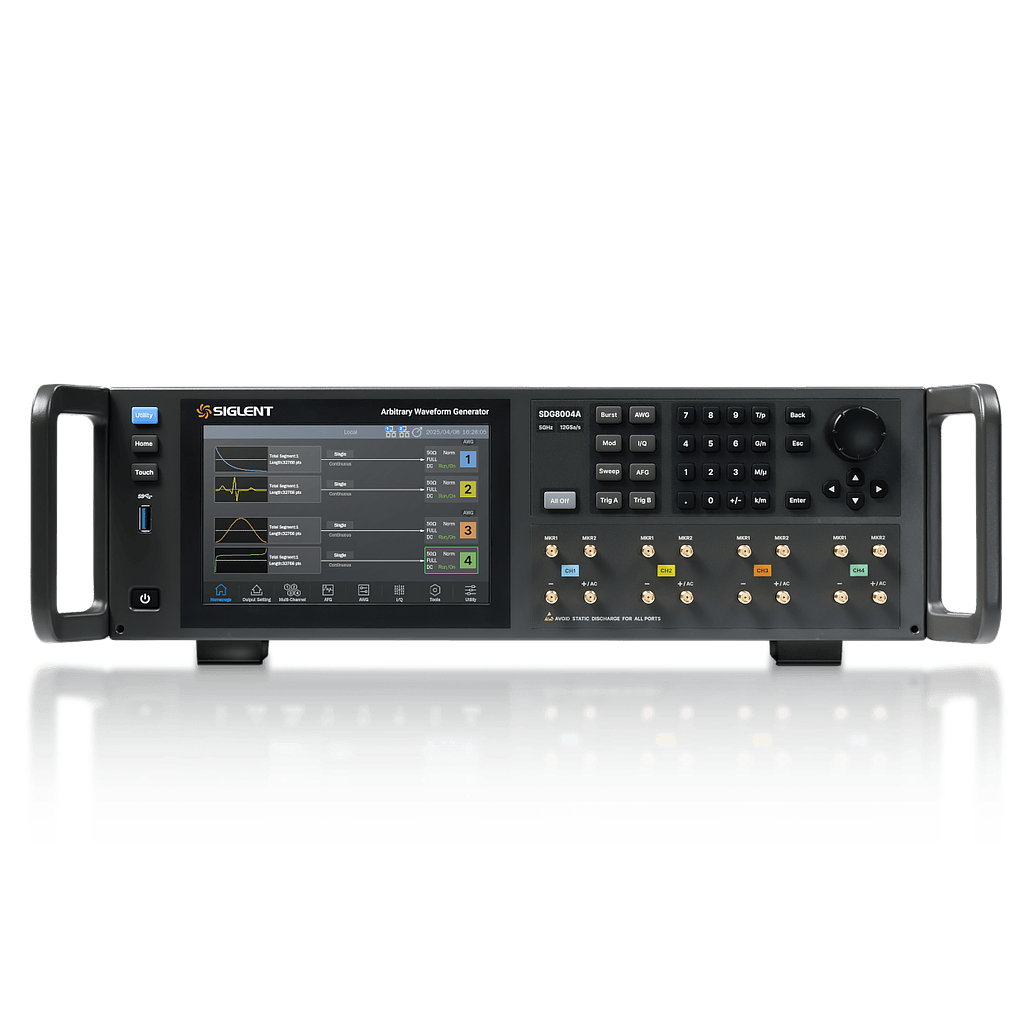

SDG8000A series function/arbitrary waveform generator, maximum 4 analog output channels, 16-bit vertical resolution, maximum 12 GSa/s (interpolation) sampling rate, output frequency up to 5 GHz and maximum modulation bandwidth up to 2 GHz. Maximum storage space of 4G points per channel, providing longer playing time without sacrificing signal bandwidth. With SigIQPro, it can also provide waveform output of communication signals such as Bluetooth, WIFI and LTE. In addition, SDG8000A also provides high-speed serial code signal(Hss) output, supports complex multi-layer sequence wave output, and has the functions of multipulse, multitone and chirp, which meets a wide range of test requirements in communication, industrial and scientific research fields.
