Scope | ||||

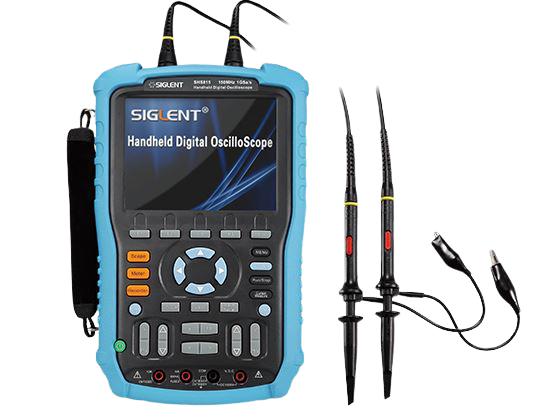

Type | SHS810 | |||
Bandwidth | 100MHz | |||
Rise Time | ≤3.5ns | |||
Input Impedance | 1MΩ±2％, 18pf±3pf | |||
Real Time Sampling Rate | Single Channel: 1GSa/s, | |||
Equivalent Sampling Rate | 50GSa/s | |||
Memory Depth | 2Mpts | |||
Time Base Range | 5 ns/ div – 50s/ div | 2.5 ns/ div – 50s/ div | ||
Scan Range | 100ms/ div ～ 50s/ div | |||
Vertical Sensitivity | 2mV/div – 100V/div(1-2-5 step) | |||
Vertical Resolution | 8 bits | |||
Trigger Types | Edge, Pulse, Video, Slope, Alternative | |||
Frequency Counter | 6 bits | |||
Connection | USB Device, USB Host | |||
Math | +, -, * , /, FFT | |||
Oscilloscope Trend Plot | 800K points | |||
| ||
Display | 6000 | |
Item | Range | Accuracy |
DC Voltage | 60mV - 1000V | ±1%±15digit |
AC Voltage | 60mV –750V | ±1%±15digit |
DC Current | 60mV -10A | ±1%±5digit |
AC Current | 60mV -10A | ±1%±5digit |
Capacitance | 40.00nF | ±3%±10digit |
400.0nF-400.0uF | ±4%±5digit | |
Resistance | 600Ω - 60MΩ | ±1%±5digit |
Continuity buzzer | <50Ω | |
Diode | 0V～2.0V | |
Trend plot | 1.2M points | |
Recorder | 7M pionts | |
Measuring mode | Manual/Auto | |
General Feature | ||
Display | 5.7 inches color TFT-LCD, 320*234 | |
Power Supply | Charging/Battery | |
Power mode | Lithium battery: 7.4V 5000mAh, Battery lasts 5 hours; DC adapter, 100-240V 50/60Hz input, 9V 4A output | |
Weight | 1.5Kg | |
Dimension | 163.2mm×259.5mm×53.3mm | |
Accessories | Two passive probes, multimeter pen USB data cable, DC adapter, manual, CD. | |
| Detailed performance parameters and technical indicators please refer to《SHS800 Series Handheld Digital Oscilloscope Datasheet》 | ||
