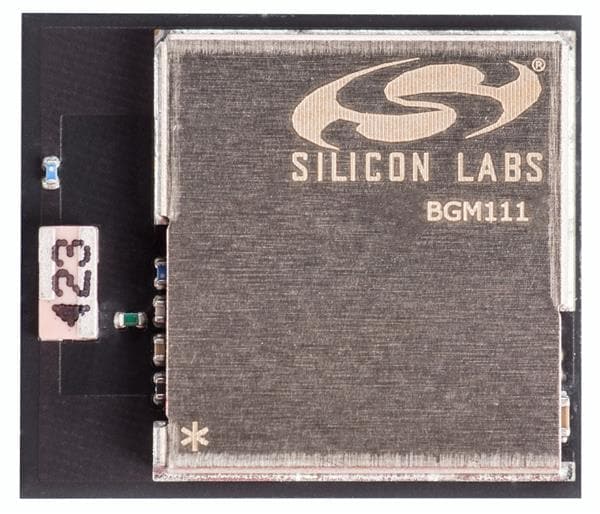

Silicon Labs BGM111A256V2R USB Adapter BGM111A Wireless Bluetooth Module, PCB, +8 dBm, 2.4 GHz, 256 kB flash, -40 to 85 C, Built-in Antenna
Manufacturer: Silicon Labs Model: BGM111A256V2R - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Core: ARM Cortex M4
Range: 200 m
Width: 12.9 mm
Height: 2.2 mm
Length: 15 mm
Antenna: Integrated
Protocol: BLE, Bluetooth 4.2
Data Rate: 1 Mb/s
Frequency: 2.4 GHz
Shielding: Unshielded
Dimensions: 12.9 mm x 15 mm x 2.2 mm
Memory Size: 256 kB
Sensitivity: - 92 dBm
Unit Weight: 3.499 g
Output Power: 8 dBm
Interface Type: Serial
Mounting Style: SMD/SMT
Moisture Sensitive: Yes
Receiver Sensitivity: - 92 dBm
Supply Voltage - Max: 3.8 V
Supply Voltage - Min: 1.85 V
Operating Supply Voltage: 1.85 V to 3.8 V
Supply Current Receiving: 8.7 mA
Supply Current Transmitting: 8.2 mA
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
