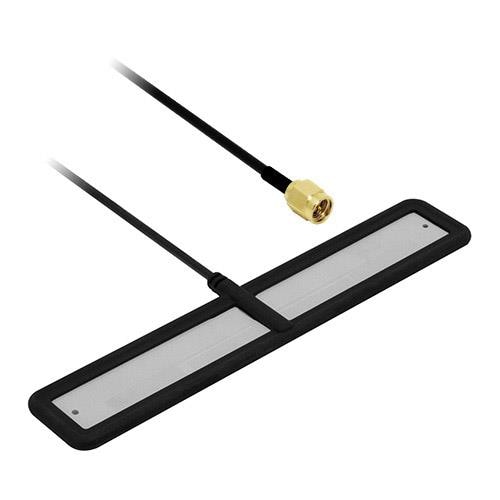

Siretta ALPHA40/2.5M/SMAM/S/S/29 Passive Antenna 5G/4G/DUAL BAND WI-FI AND ISM ADHESIVE T-BAR ANTENNA SMA MALE 2.5M CABLE

Gain: 0.5 dBi, 1 dBi, 2 dBi

VSWR: 3:1

Style: T-Bar

Width: 29.25 mm

Height: 4.2 mm

Length: 154.25 mm

Frequency: 824 MHz to 960 MHz, 1.71 GHz to 2.17 GHz, 2.3 GHz to 2.7 GHz

Impedance: 50 Ohms

Cable Type: 2.5 RG174

Application: Cellular Applications, Wireless Applications

Unit Weight: 40 g

Cable Length: 2.5 m

Polarization: Vertical

Power Rating: 1 W

REACH - SVHC: Details

Mounting Style: Adhesive Mount

Electrical Type: Dipole

Frequency Range: 824 MHz to 2.7 GHz

Number of Bands: 3 Band

Center Frequency: 868 MHz, 915 MHz, 1800 MHz, 1900 MHz, 2100 MHz, 2500 MHz

Mechanical Style: Module

Maximum Frequency: 2.7 GHz

Minimum Frequency: 824 MHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 30 C

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS, WCDMA
